Adastra AD-CC5V In-Ceiling Speaker 5.25" 50W RMS White

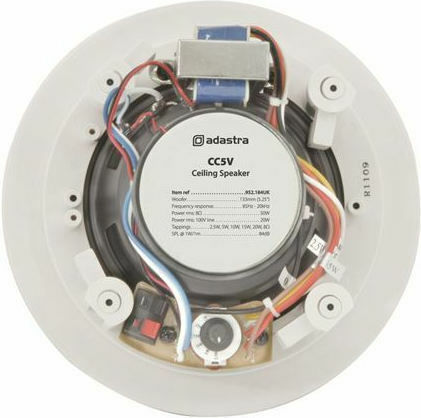

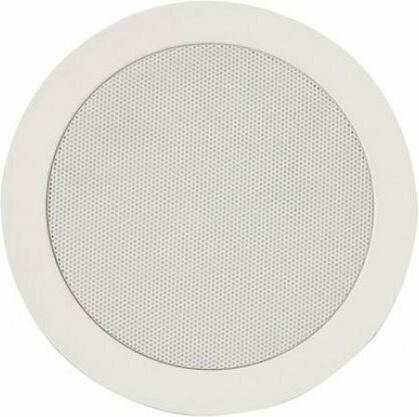

5.25'' in-ceiling speaker designed for quick installation, featuring a 2-way system with a PP mica woofer and a directional dome tweeter that delivers excellent frequency response. All housed in a white frame with a metal grille. It includes a rotary switch for selecting 100V or 8 Ohm line adjustments. Equipped with brackets for mounting on ceiling tiles with a thickness of 1-20 mm and spring terminals for easy connection.
- Dispersion angle: 160 °
- Woofer: 133mm (5.25")
- Tweeter: 38 mm (1.5")
- Frequency response: 85Hz - 20kHz
- Maximum power 8 Ohms: 80W
- RMS Power 8 Ohms: 50W
- RMS Power 100W Line: 20W
- Cut-out diameter: 166mm
- Mounting depth: 84 mm
- SPL @ 1W / 1m: 84dB (± 2dB)
- Options: 2.5, 5, 10, 15, 20W & 8 Ohm
- Dimensions: 88 x 202 mm
- Weight: 1.15kg
- Product Number
- 952.184UK
Technical Specifications
- Power (RMS)
- 50 W
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 84 dB
Main Specifications
- Placing
- Ceiling
- Quantity
- Piece
- Colour
- White
- Functionality
- Passive
Dimensions
- Height
- 8.8 cm
- Width
- 20.2 cm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
