0U vertical installation – more available rack space
The PDU mounts vertically in a compatible cabinet frame, leaving all rack units available for servers, switches, patch panels and other active equipment.
- 0U vertical installation
- Suitable for compatible racks and technical cabinets
- Extruded aluminium
- IP20 protection rating
SPD surge protection up to 10,000 A
The built-in SPD module provides additional protection against transient surges—a valuable feature for computer and communications equipment powered through the PDU.
- Surge protection: up to 10,000 A
- Built-in SPD module
- Visible indicator on the module
- Main switch with transparent protective cover

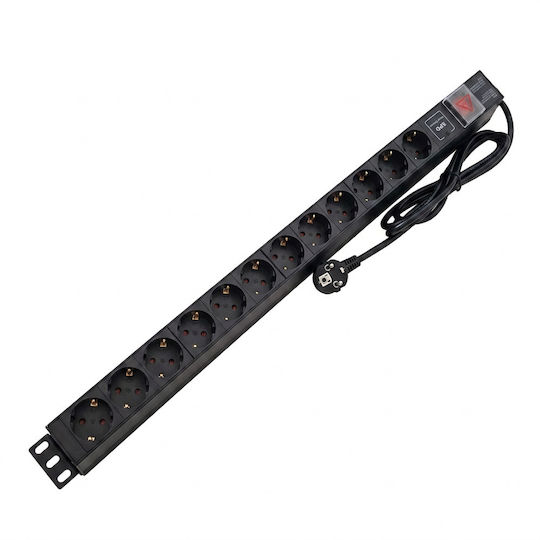

12 Schuko sockets angled at 45°
The twelve sockets are angled at 45°, making it easier to connect Schuko plugs and use the space along the PDU efficiently.
- 12 × EU / Schuko sockets
- Standard: DIN 49 440
- Socket orientation: 45°
- Suitable for high-density equipment racks
16 A and up to 3,500 W for rack equipment
The PDU distributes power to multiple devices simultaneously, provided the total load stays within the specified limits of 16 A and up to 3,500 W.
- Rated voltage: 250 V AC
- Frequency: 50/60 Hz
- Maximum current: 16 A
- Maximum total power: 3,500 W
2 m cable and construction for technical applications
The integrated 2-metre cable offers flexibility when positioning the PDU in the rack and connecting it to the power supply. The aluminium housing provides a sturdy construction for professional use.
- Cable: H05VV-F 3 × 1.5 mm²
- Length: 2 m
- Angled German CEE 7/7 Schuko plug
- Black aluminium housing
