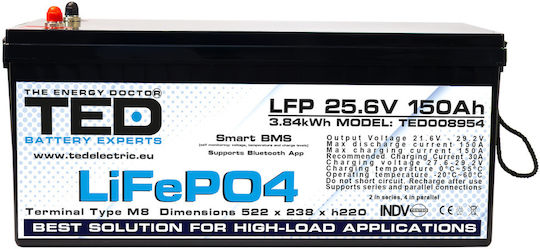

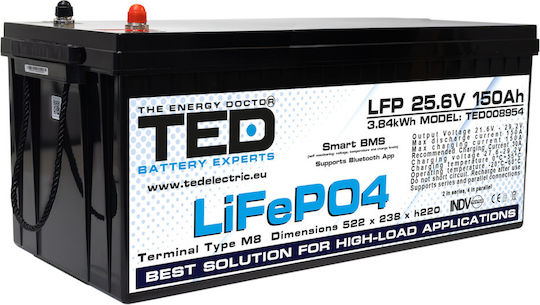

The TED008954 24V 150Ah SMART BMS battery is designed for UPS and photovoltaic systems, energy backup, and security applications where a stable, safe, and easily monitored power supply is essential.

Unlike traditional AGM/GEL batteries, it offers a much longer service life, high efficiency, and monitoring via a mobile app.

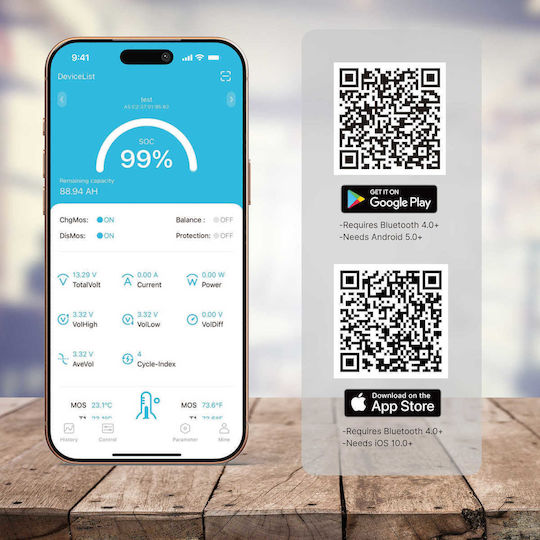

The battery features a Smart BMS with Bluetooth, allowing you to connect directly to the mobile app, available for iOS and Android. The app lets you monitor the following in real time:

• State of charge (SOC)
• Battery voltage
• Charge/discharge current
• Internal temperature
• BMS protection status

• UPS systems for routers, switches, and security cameras
• Backup power for IT equipment
• Security and telecommunications systems
• Photovoltaic systems
• Applications requiring a compact, reliable battery

• Nominal voltage: 25.6 V
• Capacity: 150 Ah
• Total energy: 3840 Wh
• Peak power: 6400 W for 3 seconds

This capacity is suitable for powering critical equipment for several hours, depending on its energy consumption.

• Designed for 24 V systems
• Can be connected in parallel, up to 4 units, to increase capacity
• Can be connected in series, up to 2 units, to increase voltage
• Compatible with UPS systems and inverters that support LiFePO4 batteries

Not recommended for UPS systems designed exclusively for AGM/GEL batteries without LiFePO4 support.

• LiFePO4 technology with superior thermal stability
• Built-in smart BMS with protection against:
• Overcharging
• Over-discharging
• High temperature
• Protection rating: IP50

• Up to 6,000 cycles at 80% DoD
• Estimated service life: over 12 years
• Up to 10 times more cycles than AGM/GEL batteries used in UPS systems

Lower total cost in the long term, with fewer replacements.

• Compact dimensions, easy to install in technical spaces
• Lighter than traditional batteries
• For indoor use only
