Smart protection for 24 V systems – reliable stability

A compact, reliable system designed to keep 12 V batteries in good condition over the long term.

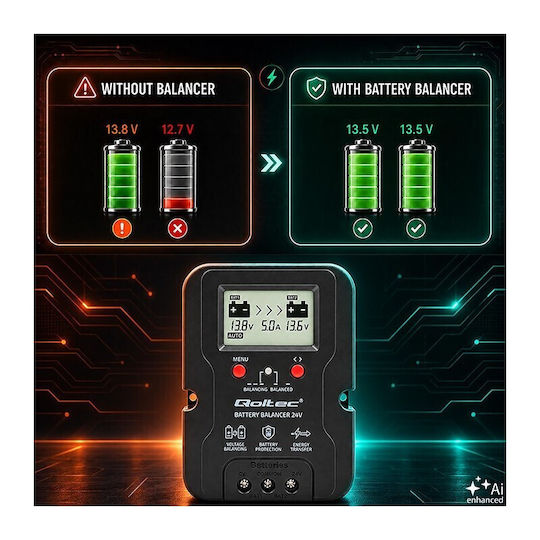

Automatically balances the voltage between batteries, preventing damage and extending their service life while ensuring stable, safe operation in 24 V systems. All this in a compact, durable housing. It operates independently, drawing power directly from the connected batteries.

Key features and technical specifications

• Automatically balances voltage between 12 V batteries in 24 V systems
• Maximum balancing current: 5 A
• Built-in reverse polarity protection
• Supports two 12 V batteries—lead-acid (AGM, GEL, deep-cycle) and LiFePO4
• Display shows the device’s operating status
• Recommended battery capacity: 1 Ah–1000 Ah
• Powered directly by the batteries—no connection to 230 V AC required
• High-precision integrated circuits minimize component variations

Voltage balancer connection procedure

Before connecting the voltage balancer, make sure both batteries are fully charged, are the same type, and have the same capacity. The voltage difference between them must not exceed 0.2 V.

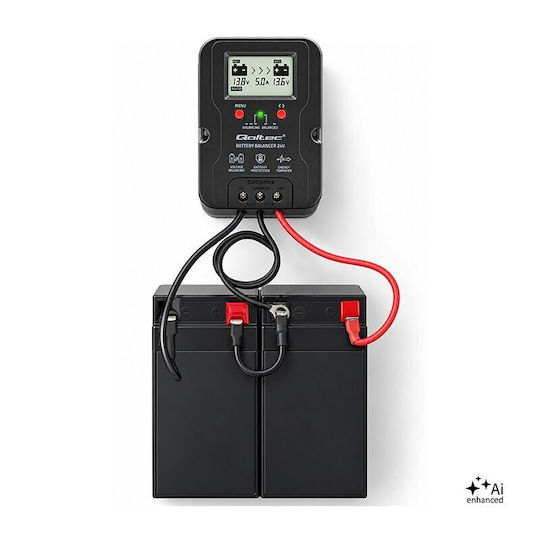

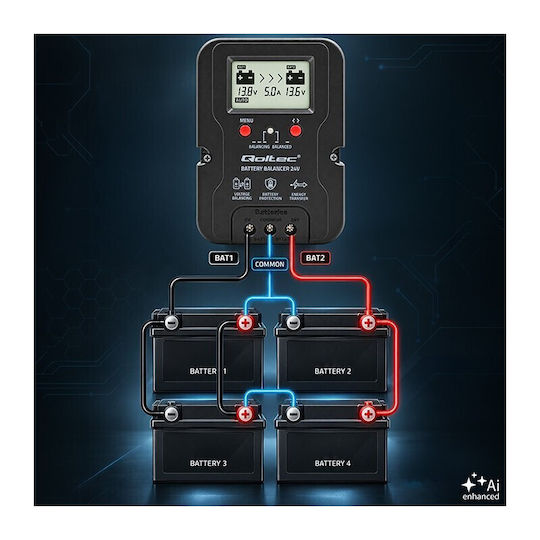

Connection is simple: connect the black wire to the negative terminal, the red wire to the positive terminal of the complete 24 V system, and the additional wire to the connection point between the batteries.

Checking battery status is easy

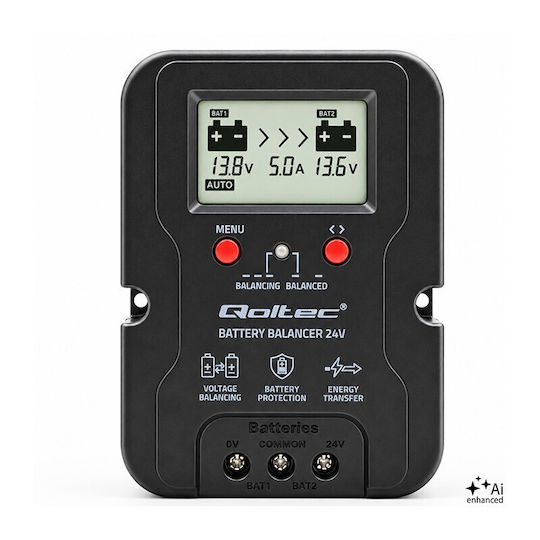

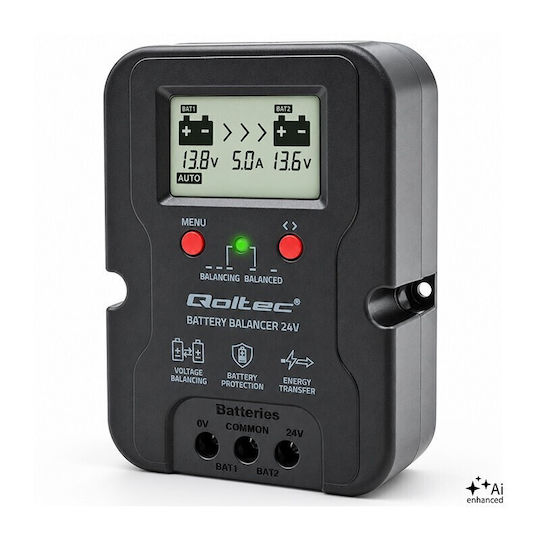

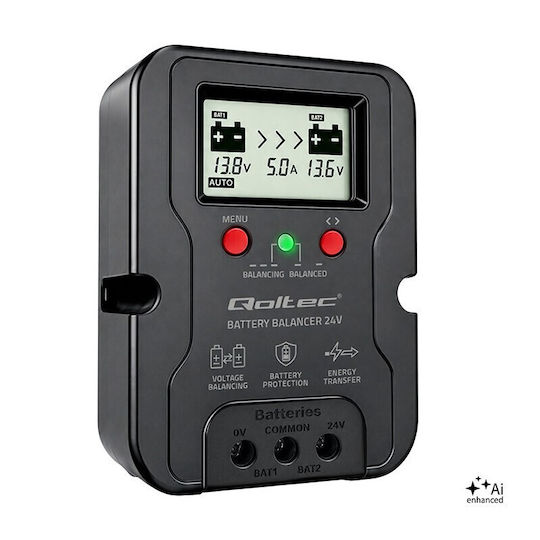

The LCD shows key information about the device’s operation, including battery voltage, current balancing status, and balancing current. Users can start the balancing process manually and select the appropriate balancing mode.

• Automatic balancing mode – starts balancing only when the battery is fully charged or when the voltage is low
• Forced balancing mode – designed for batteries with significant voltage imbalance
• Stop balancing – stops the balancing process
• Manual balancing mode – for testing the balancer or temporarily balancing the voltages

Works with any 24 V system

Suitable for motorhomes, boats, and solar systems – compatible with AGM, GEL, LiFePO4, and deep-cycle batteries.

The 24 V voltage balancer is an excellent choice wherever two 12 V batteries are connected in series. Ideal for motorhomes, caravans, boats, solar systems, electric vehicles, forklifts, and emergency systems.
