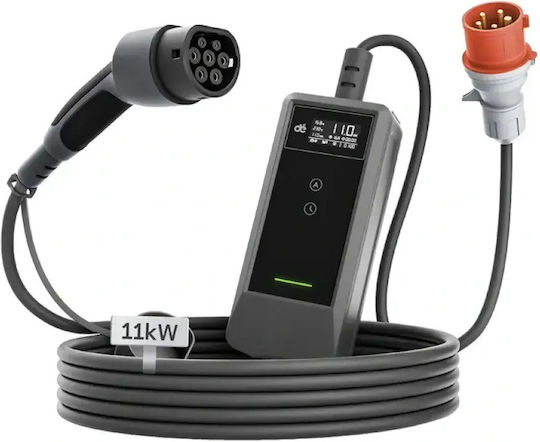

DEPOW 11 kW Portable Electric Vehicle Charger

The DEPOW 11 kW portable electric vehicle charger is a three-phase device that operates at 400 V and is suitable for charging electric vehicles with a Type 2 socket. It operates in Mode 2 and offers current settings of 6 A, 8 A, 10 A, 13 A and 16 A, allowing you to adapt charging to the capacity of your electrical installation.

The charger features a 20-metre cable, an LCD screen, LED indicators and scheduled charging. It is suitable for indoor and outdoor use, such as in garages or driveways.

Key features:

• Five current settings.
• LCD screen for monitoring parameters and operating status.
• LED indicators for power, charging and error status.
• Scheduled charging function.
• Plug & Play design for easy use.
• IP66 rating for the control box and IP55 rating for the Type 2 connector.
• Suitable for operating temperatures from -25 °C to 50 °C.
• Low standby power consumption of <5 W.
• Comprehensive safety features to protect against overloads, short circuits and other malfunctions.

Technical specifications:

• Maximum power: 11 kW
• Power supply: Three-phase
• Voltage: 400 V AC
• Frequency: 50 Hz
• Cable length: 20 m
• Rated current: 6 A / 8 A / 10 A / 13 A / 16 A
• Control box dimensions: 220 × 95 × 57 mm
• Storage temperature: -40 °C to 80 °C
• Operating humidity: 5–95% RH, non-condensing
• Type A RCD: 30 mA AC + 6 mA DC
