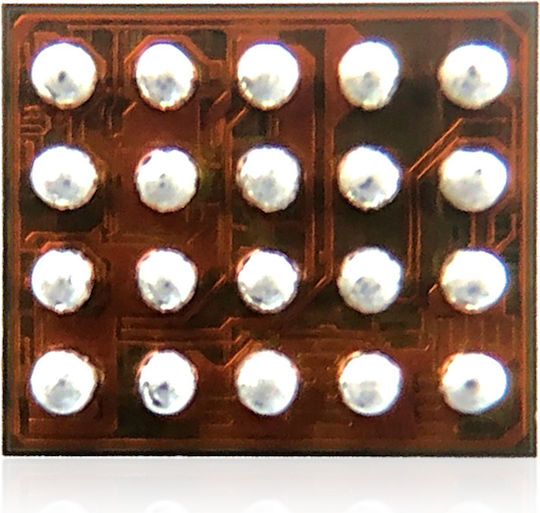

The Chestnut integrated circuit controls the display backlight and functions as a flash driver. It features a high-efficiency boost voltage regulator that automatically adjusts the output voltage to the correct operating voltage for the LEDs, improving efficiency. It supports multiple brightness adjustment methods.
- Type: Integrated circuit
- Functions: Display and flash driver, boost voltage regulator
- Number of pins: 20

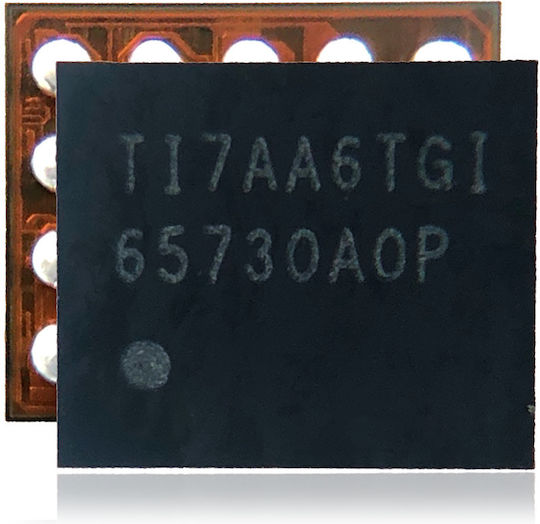

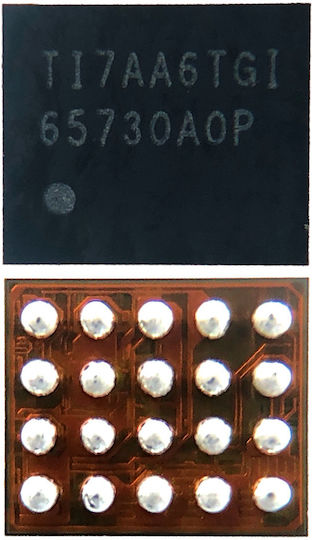

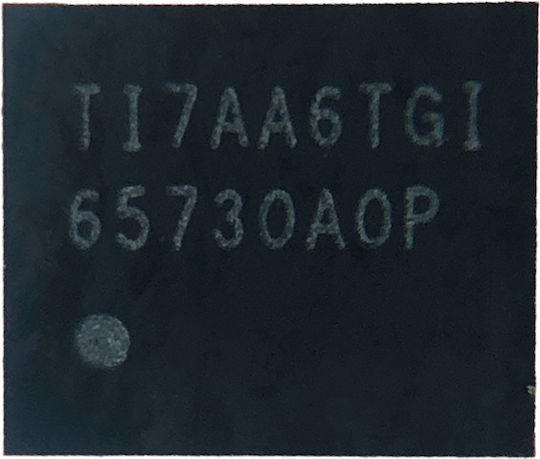

- Marking: TI 65730A0P
- Compatibility: iPhone 5C, iPhone 5S, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6S, iPhone 6S Plus, iPhone 7, iPhone 7 Plus
- Compatible model numbers: A1456, A1453, A1549, A1522, A1633, A1634, A1660, A1661, A1863, A1864, A1984

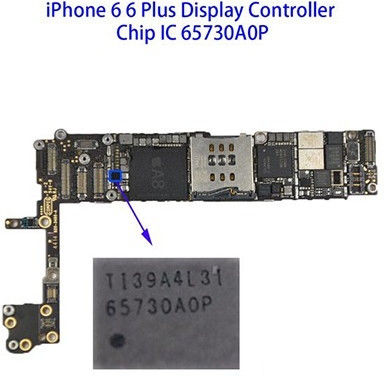

- Circuit reference by model: U3 for iPhone 5C and 5S, U1501 for iPhone 6 and 6 Plus, U4000 for iPhone SE, 6S and 6S Plus, U3703 for iPhone 7 and 7 Plus
