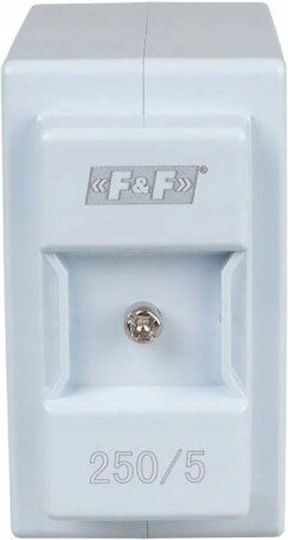

FF Professional Single-phase Electrical Panel Meter

The FF Professional single-phase current transformer measures current in electrical installations and features a closed core. Its 250/5 transformation ratio and 0.2S accuracy class support the...

The FF Professional single-phase current transformer measures current in electrical installations and features a closed core. Its 250/5 transformation ratio and 0.2S accuracy class support the measurement of high currents.

  • Type: Current transformer
  • Number of phases: Single-phase
  • Transformation ratio: 250/5
  • Rated secondary current: 5 A
  • Maximum current: 5 A
  • ...
See full description See full description

Top specs

See all
79 37 €
Delivery Tue, 01 Dec - Thu, 03 Dec
3,50 € to a Skroutz Point or 4,50 € to an address
Do you want it with Free shipping?
Sent from Greece
From Getters 4.5 (118)
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund. Learn more

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Questions

Description & Specifications

The FF Professional single-phase current transformer measures current in electrical installations and features a closed core. Its 250/5 transformation ratio and 0.2S accuracy class support the measurement of high currents.

  • Type: Current transformer
  • Number of phases: Single-phase
  • Transformation ratio: 250/5
  • Rated secondary current: 5 A
  • Maximum current: 5 A
  • Accuracy class: 0.2S
  • Power: 2.5 VA
  • Frequency: 50–60 Hz
  • Maximum operating voltage: 0.66 kV AC
  • Operating voltage: 0.66/0.72 kV
  • Insulation withstand voltage: 3 kV/1 min
  • Insulation class: E
  • Thermal current: 1.2 × In
  • Short-time current Ith: 60 × In
  • Dynamic current Idyn: 2.5 × Ith
  • Connection: S1/S2 with 4 mm² screw terminals
  • Aperture: 32 × 32 mm
  • Dimensions: 75 × 98 × 42 mm
  • Tightening torque: 0.5 Nm
  • Operating temperature: -5–40 °C
  • Mounting: Vertical or horizontal
  • Protection rating: IP20
  • Standards: PN-EN 61869-12009, PN-EN 61869-22013-06
  • Weight: 0.5 kg
