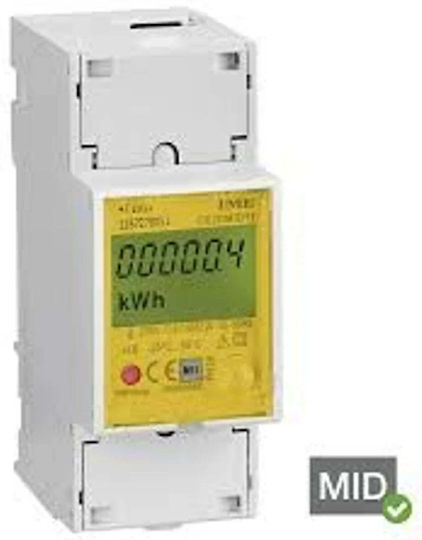

The IME CE2DMID12 digital single-phase energy analyzer measures active energy and supports direct measurement. It features a digital display and is suitable for installation in an electrical panel.
- Type: Energy analyzer
- Meter type: Electronic
- Number of phases: Single-phase
- Maximum current: 63 A
- Reference current: 10 A
- Reference voltage N-L: 207–230 V
- Reference voltage L-L: Up to 264 V
- Frequency range: 47–63 Hz
- Type of energy measured: Active energy
- Measurement method: Direct measurement
- Display: Digital
- Number of tariffs: Single tariff
- Accuracy class: B
- Verification: Verified
- Calibration: Calibrated
- Pulse output: Electrical, S0 type
- Pulse rate: 0.001–100 Imp/kWh (kvarh)
- Installation: Front-mounted
- Degree of protection: IP52
- Reverse measurement lock: Yes
- Password lock: Yes
- Type
- Energy Analyzer
- Display Type
- Digital
- Number of Phases
- Single-phase
- Maximum Current
- 63 A
