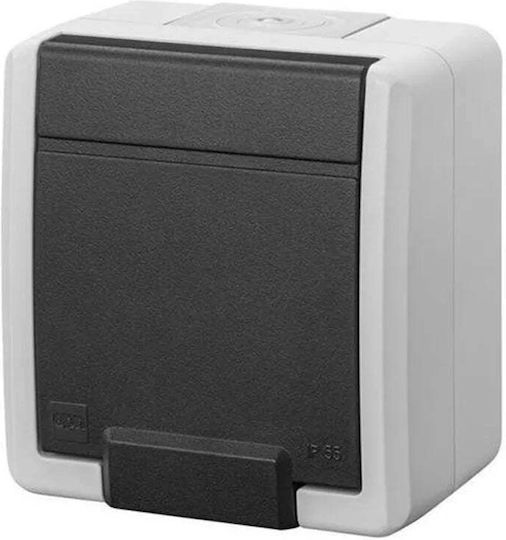

The Elektro Plast 5041-10 single surface-mounted socket has a 2P+E grounding connection and IP55 protection. Its two-component 2K seal and halogen-free flat cable gland help protect against dust and water, and the protection rating can be upgraded to IP65. It is suitable for indoor and outdoor installations, such as garages and industrial spaces.
- Type: Complete unit
- Mounting: Surface-mounted
- Number of sockets: 1
- Colour: Grey RAL 7035
- Protection rating: IP55, upgradeable to IP65
- Impact resistance: IK07
- UV resistance: Yes
- Material: ABS+TPE
- Grounding: 2P+E
- Conductors: 3
- Terminals: Screw terminals
- Voltage: 250 V
- Current: 16 A
- Dimensions: 76 × 81 × 56 mm
- Compliance certifications: CE, WEEE
Dimensions
- Type
- Complete
- Number of Sockets
- Single
- Type
- External
- USB-A
- No
- USB-C
- No
- Colour
- Grey
Voltage & Load
- Current Intensity
- 16 A
- Nominal Voltage
- 250 V
Safety & Protection
- Grounding
- 2P+E
- Protection Certification
- IP55
- Protection for Children
- No
Additional Features
- Illuminated
- No
- Switch
- No
- with Light Sensor
- No
- Lid
- No
