Digit Industrial Type Thermostat DN-TMZ-41-F
Misc Industrial Building Equipment

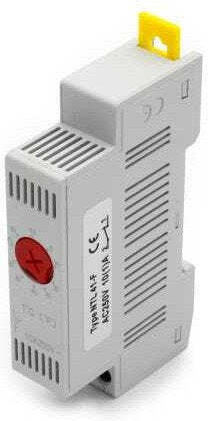

Digit Industrial Type Thermostat DN-TMZ-41-F

The industrial-type Digit DN-TMZ-41-F thermostat controls heating elements with adjustable operation. The bimetal sensor and normally closed contact open when the thermostat is activated. It is...

The industrial-type Digit DN-TMZ-41-F thermostat controls heating elements with adjustable operation. The bimetal sensor and normally closed contact open when the thermostat is activated. It is mounted on a 35 mm DIN rail in accordance with EN 60715.

  • Adjustment range: 0–60 °C
  • Rated voltage: 230 V
  • Switching temperature differential: 5 °C
  • Service life: More...
See full description See full description
15 26 €
Delivery Mon, 16 Nov - Wed, 18 Nov
4,50 € shipping cost
Sent from Greece
From Getters 4.6 (113)
4.6 (113 reviews)
Greece
20+ pieces
See Industrial Materials on the page of Getters

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund. Learn more

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

The industrial-type Digit DN-TMZ-41-F thermostat controls heating elements with adjustable operation. The bimetal sensor and normally closed contact open when the thermostat is activated. It is mounted on a 35 mm DIN rail in accordance with EN 60715.

  • Adjustment range: 0–60 °C
  • Rated voltage: 230 V
  • Switching temperature differential: ±5 °C
  • Service life: More than 100,000 cycles
  • Switching capacity: 250 VAC, 10 (2) A / 120 VAC, 15 (2) A
  • DC power rating: 30 W at 24–72 VDC
  • Maximum peak current: 16 A AC for 10 seconds
  • Connection: Two-pole terminal
  • Tightening torque: Up to 0.5 Nm
  • Solid wire cross-section: 2.5 mm² (AWG 14)
  • Stranded wire cross-section: 1.5 mm² (AWG 16)
  • Housing material: UL94 V-0-compliant plastic
  • Color: Light gray
  • Dimensions: 83 × 48 × 17 mm
  • Weight: 40 g
  • Operating and storage temperature: −45 to +80 °C (−49 to +176 °F)
  • Humidity: Up to 90% RH, non-condensing
  • Protection rating: IP20
  • EU compliance declarations: RoHS, LVD, EC, REACH
