CS-R3-50H CCTV Tester AHD / HD-CVI / HD-TVI / IP / CVBS

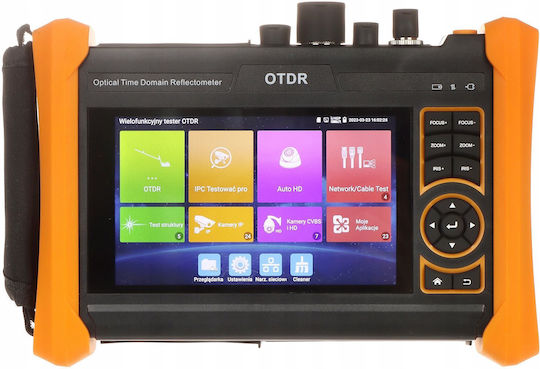

The CS-R3-50H CCTV tester combines camera testing functions with an OTDR optical time-domain reflectometer for locating faults in optical fibers. It supports AHD, HD-CVI, HD-TVI, IP and CVBS cameras,...

The CS-R3-50H CCTV tester combines camera testing functions with an OTDR optical time-domain reflectometer for locating faults in optical fibers. It supports AHD, HD-CVI, HD-TVI, IP and CVBS cameras, and can search for and display IP cameras compatible with the Onvif protocol. It includes DH and Hik tools, Google Chrome, LAN connection monitoring, IP address...

See full description See full description
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund. Learn more

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

The CS-R3-50H CCTV tester combines camera testing functions with an OTDR optical time-domain reflectometer for locating faults in optical fibers. It supports AHD, HD-CVI, HD-TVI, IP and CVBS cameras, and can search for and display IP cameras compatible with the Onvif protocol. It includes DH and Hik tools, Google Chrome, LAN connection monitoring, IP address scanning and ICMP packet connection testing.

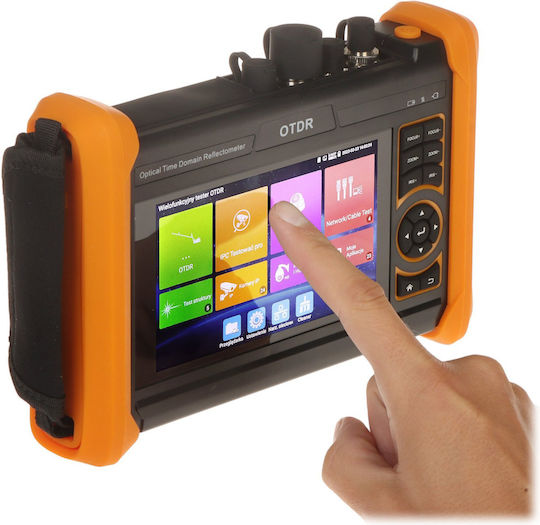

It supports PoE and detects breaks in UTP cables, with TDR functionality up to 180 m. The 5.4″ Retina color touchscreen has a resolution of 1920 x 1152 px. It can be operated via a graphical menu, touchscreen or buttons.

  • Video technologies: AHD, HD-CVI, HD-TVI, IP, CVBS
  • IP protocol: Onvif
  • Network functions: LAN connection monitoring, IP address scanning, ICMP packet testing
  • PoE support: Yes
  • Tools: DH, Hik, Google Chrome

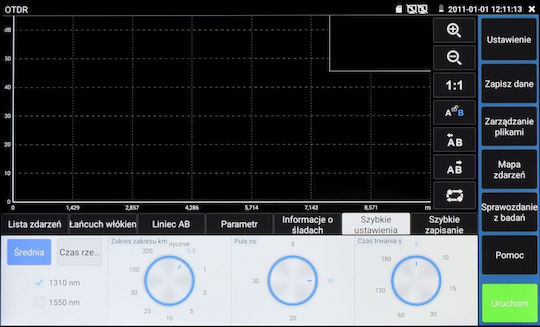

  • OTDR: optical time-domain reflectometer for locating faults in optical fibers
  • Wavelength: 1310 nm / 1550 nm
  • Maximum measurement range: 200 km
  • Measurement error: ± (1 m + 5×10^-5 × distance + sampling interval)

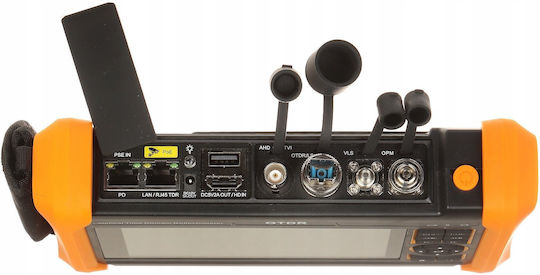

  • OTDR connection: SC
  • Measurement duration: 5 s, 10 s, 15 s, 30 s, 1 min, 2 min, 3 min
  • Optical power measurement: -70 ... +10 dBm
  • VLS: LD laser, 650 nm, 10 mW, range 8 km
  • Display: Retina, 5.4″, 1920 x 1152 px

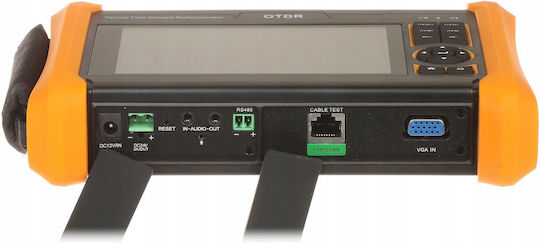

  • Video input: 1 BNC for AHD, HD-CVI, HD-TVI, CVBS
  • Video outputs: 1 HDMI, 1 VGA
  • LAN ports: 2 for cameras and PoE switches
  • Audio input: 1 Mini Jack
  • Audio output: 1 Mini Jack
  • Audio testing: Yes
  • Serial port: RS-485
  • Transmission speed: 150 to 115200 b/s
  • Wi-Fi: Yes

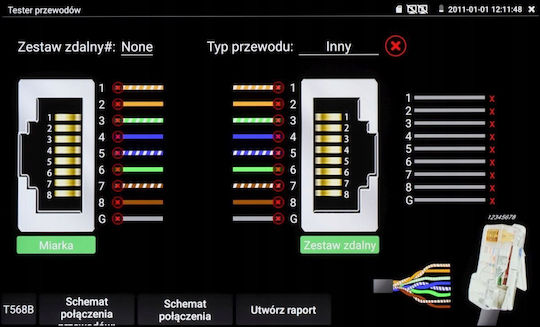

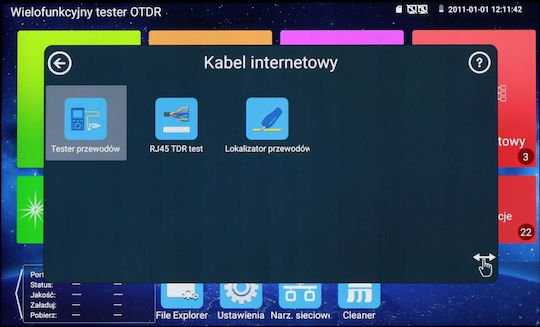

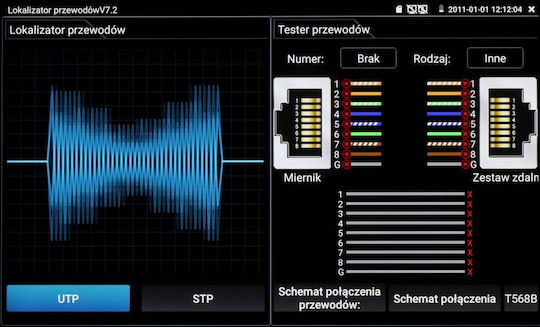

  • Cable detection: TDR for locating breaks in UTP cables, up to 180 m
  • Power supply: 5 V DC / 2 A via USB port, 12 V DC / 3 A, 24 V DC / 2 A, 48 V via PoE/LAN

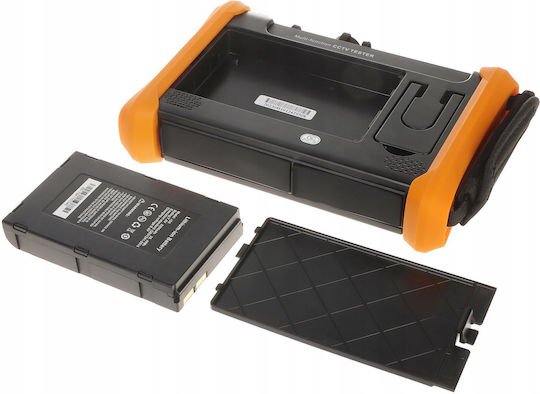

  • Battery: Li-Ion, 5200 mAh
  • Maximum battery life: 10 hours

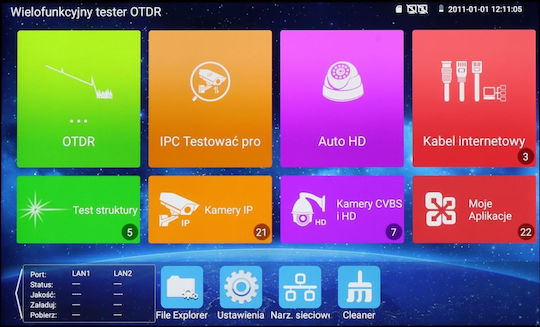

  • Controls: graphical menu, touchscreen and buttons
  • Operating temperature: -10 °C to 50 °C
  • Relative humidity: 30 % to 90 %
  • Dimensions: 212 x 148 x 49 mm
  • Languages: Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian
