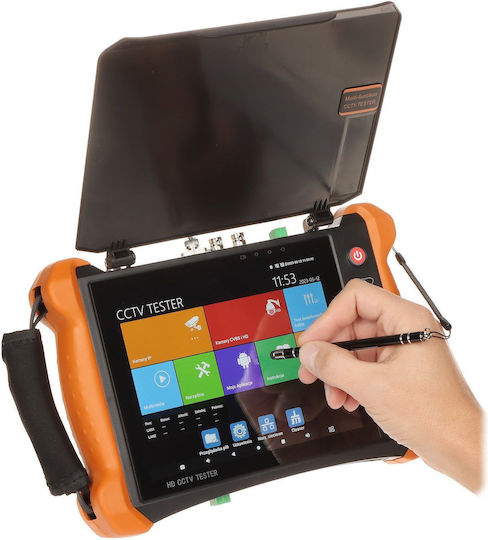

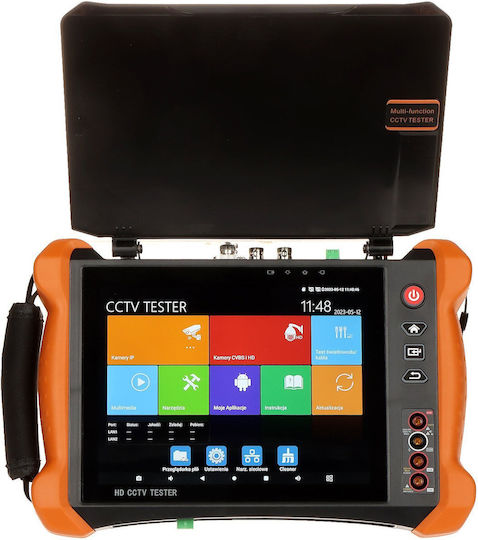

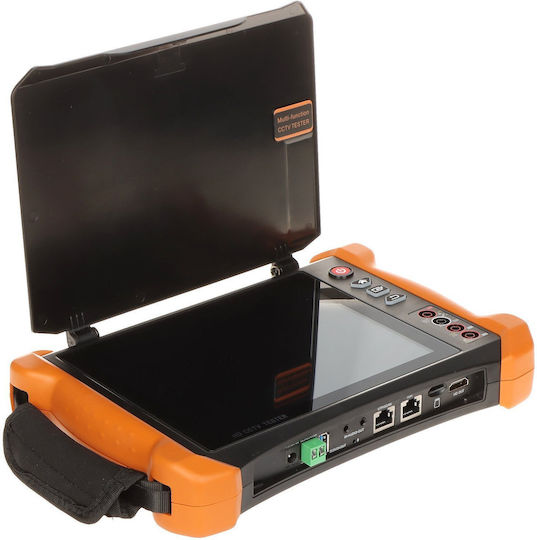

CCTV Tester AHD / HD-CVI / HD-TVI / IP / CVBS

Multifunctional CCTV tester for installation and diagnosis of surveillance systems. Supports AHD, HD-CVI, HD-TVI, TCP/IP, and CVBS, with image resolution up to 8 Mpx or TCP/IP up to 8K. Features an 8”...

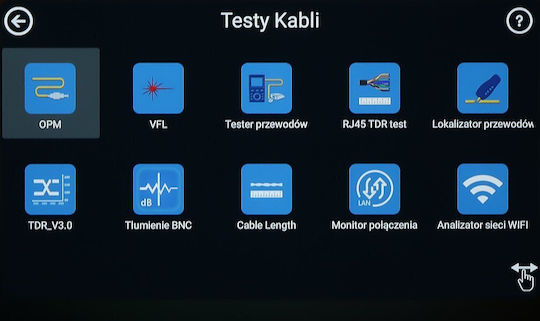

Multifunctional CCTV tester for installation and diagnosis of surveillance systems. Supports AHD, HD-CVI, HD-TVI, TCP/IP, and CVBS, with image resolution up to 8 Mpx or TCP/IP up to 8K. Features an 8” Retina touch screen and functions for measuring video signal, cable testing, voltage, current, resistance, continuity, and diodes.

Technical specifications:

  • ...
See full description See full description
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

Multifunctional CCTV tester for installation and diagnosis of surveillance systems. Supports AHD, HD-CVI, HD-TVI, TCP/IP, and CVBS, with image resolution up to 8 Mpx or TCP/IP up to 8K. Features an 8” Retina touch screen and functions for measuring video signal, cable testing, voltage, current, resistance, continuity, and diodes.

Technical specifications:

  • Screen: 8" Retina, capacitive touch screen, 2048 x 1536 px

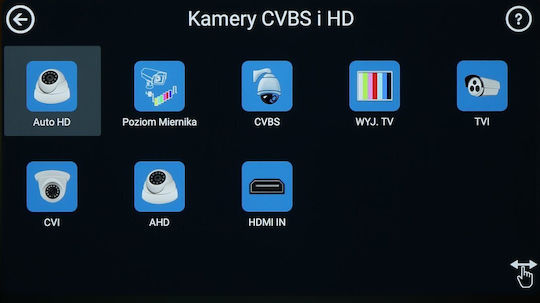

  • Video inputs: 1 AHD / HD-CVI / HD-TVI / CVBS (BNC), 1 HDMI
  • Video outputs: 1 CVBS (BNC), 1 HDMI
  • LAN: 2 ports for cameras and PoE switch
  • Audio: 1 Mini Jack input, 1 Mini Jack output
  • Serial port: RS-485
  • Protocols: Pelco-D, Pelco-P, and others
  • Data transfer speeds: 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s
  • Power supply: 5V DC / 2A (USB), 12V DC / 3A, 24V DC / 2A, 48V (PoE)
  • Battery: Li-Ion 11.1V, 3350 mAh
  • Battery operation time: up to 10 hours
  • Operating temperature: -10 °C ... 50 °C
  • Humidity: 30% ... 90%
  • Weight: 1.22 kg
  • Dimensions: 263 x 182 x 42 mm

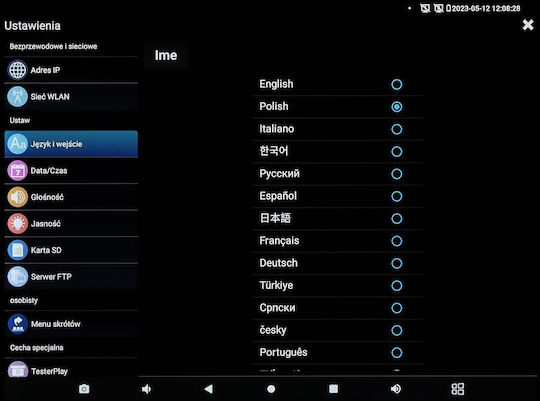

  • Languages: Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian

Manufacturer

OEM
See full description

Specifications

Specifications

Compatibility
AHD, HD-CVI, HD-TVI, IP, CVBS

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Multifunctional CCTV tester for installation and diagnosis of surveillance systems. Supports AHD, HD-CVI, HD-TVI, TCP/IP, and CVBS, with image resolution up to 8 Mpx or TCP/IP up to 8K. Features an 8” Retina touch screen and functions for measuring video signal, cable testing, voltage, current, resistance, continuity, and diodes.

Technical specifications:

  • Screen: 8" Retina, capacitive touch screen, 2048 x 1536 px
  • Video inputs: 1 AHD / HD-CVI / HD-TVI / CVBS (BNC), 1 HDMI
  • Video outputs: 1 CVBS (BNC), 1 HDMI
  • LAN: 2 ports for cameras and PoE switch
  • Audio: 1 Mini Jack input, 1 Mini Jack output
  • Serial port: RS-485
  • Protocols: Pelco-D, Pelco-P, and others
  • Data transfer speeds: 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s
  • Power supply: 5V DC / 2A (USB), 12V DC / 3A, 24V DC / 2A, 48V (PoE)
  • Battery: Li-Ion 11.1V, 3350 mAh
  • Battery operation time: up to 10 hours
  • Operating temperature: -10 °C ... 50 °C
  • Humidity: 30% ... 90%
  • Weight: 1.22 kg
  • Dimensions: 263 x 182 x 42 mm
  • Languages: Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian

Manufacturer

OEM
Compatibility
AHD, HD-CVI, HD-TVI, IP, CVBS

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

1.440,38 €
