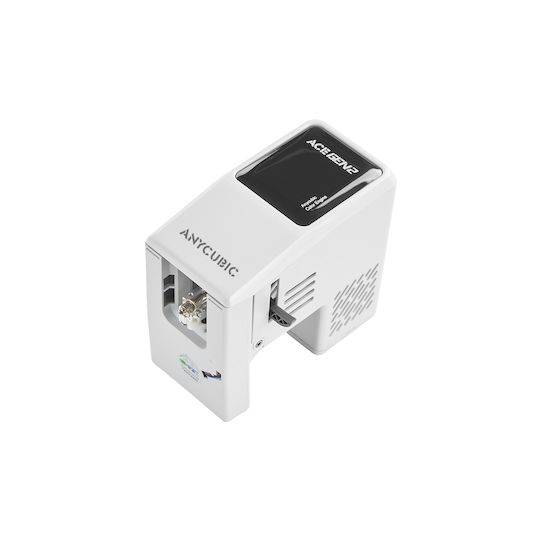

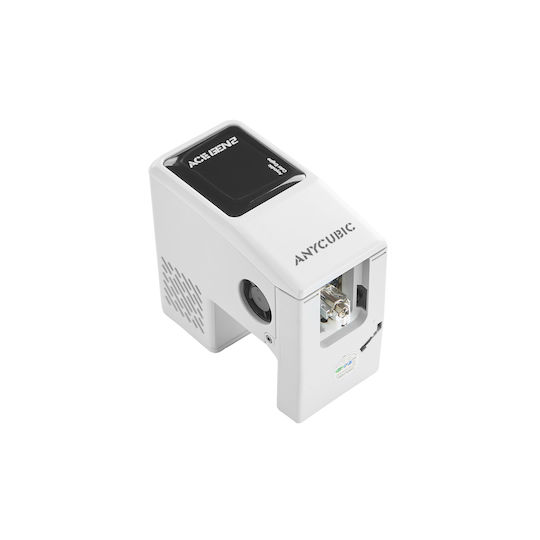

The Anycubic Kobra X Series ACE GEN2 print head is a complete toolhead assembly for Kobra X Series 3D printers. It combines extrusion, cooling and position detection, and, when paired with the Anycubic ACE system, supports automatic feeding of multiple filament colors or materials.
Dedicated PTFE tube paths and a cam-gear feeding mechanism make it easier to load, unload and purge filament quickly. The print head includes a high-temperature hotend, a high-efficiency heating block and a silicone insulation cover, as well as fans that isolate heat at the hotend and cool the printed part near the nozzle.
- Type: Complete print head assembly
- Compatibility: Anycubic Kobra X Series 3D printers
- Multi-filament system: Anycubic ACE
- Filament feeding: PTFE tube channels and cam-gear mechanism
- Sensors: Position, filament movement and clog detection
- Automatic calibration: Z-offset adjustment and print bed mapping
- Cooling: Fans for the hotend and printed part
- Mounting: On the X-axis carriage with M3 hex screws
- Connections: Ribbon cables and quick-connect wiring
