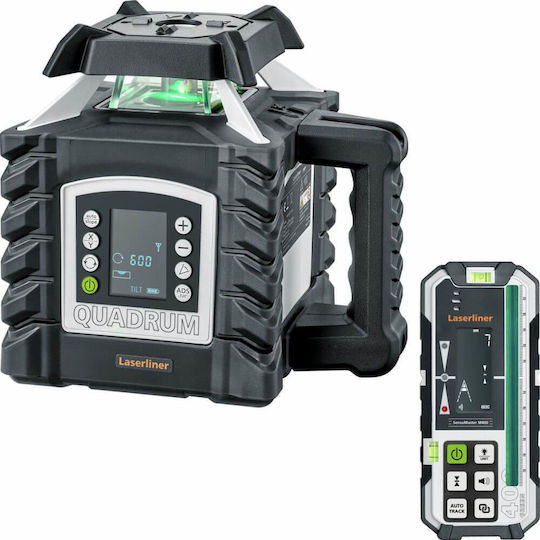

Laserliner Quadrum DigiPlus GT M400 S Rotary Laser Level Green Beam 5V with Working Range 50m
Laser Levels

Laserliner Quadrum DigiPlus GT M400 S Rotary Laser Level Green Beam 5V with Working Range 50m

Key features:

  • Green laser & Tracking
  • Digital slope input %
  • Receiver range up to 400m
  • 2-way remote control 50m

Align every construction site with absolute precision thanks to the Laserliner Quadrum DigiPlus GT M400 S rotary green laser with Tracking Function.

See full description

Top specs

  • Laser Color

    Green

    Ideal for outdoor use.
  • Working Range 50 m

  • Wavelength

    515

    Low to medium visibility, suitable for short distances.
  • See all
2230 76 €
2,23€ cashback in Coins 2,23€ cashback in Coins
Delivery Wed, 07 Oct - Fri, 09 Oct
Free shipping cost
Sent from Greece
From Lasertek
Greece
5 pieces
See Levels / Angle Meters on the page of Lasertek
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Review the product
Product report

Description

Description

At a glance

  • Green laser & Tracking: Automatic beam alignment with the mm receiver for absolute accuracy.
  • Digital slope input %: Adjustment of X and Y axes with motorized Tilt function up to 6°.
  • Receiver range up to 400m: SensoMaster M400 S receiver with mm indication, Piezo buzzer, and magnet.
  • 2-way remote control 50m: Bidirectional control with LC display and real-time synchronization of settings.

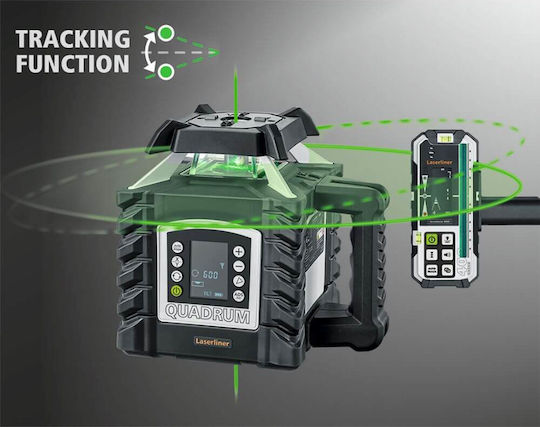

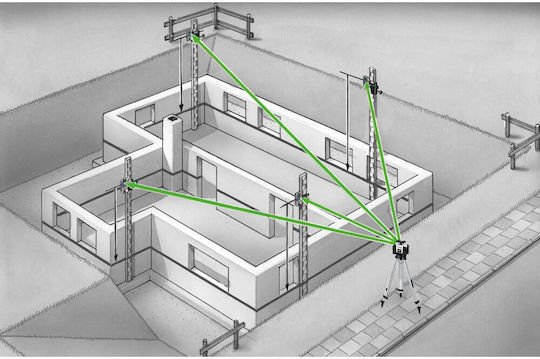

Tracking Function & Green Laser

When precision in construction is the priority, the Tracking Function automatically locks the green laser beam to the receiver’s zero position via wireless transmission. This allows you to align horizontal and vertical planes in record time, whether you are installing partitions or preparing foundations. You maintain full control with outstanding clarity.

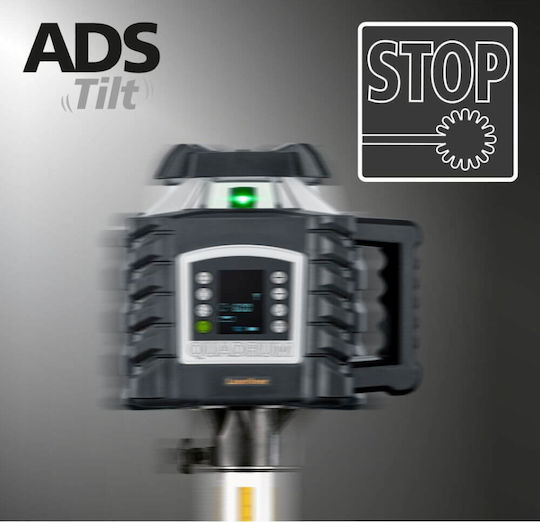

Digital Tilt Adjustment & ADS

Digitally adjust the inclination on the X and Y axes with exceptional accuracy of 0.02% and monitor the values on the easy-to-read LC display. The motorized Tilt function automatically handles inclinations of up to 6°, while the Anti-Drift-System (ADS) and AntiShake technology protect you from errors on vibrating surfaces or in windy conditions. This allows you to carry out every measurement with complete confidence.


Bidirectional Remote Control & 35h Battery Life

Control all functions from up to 50 meters away with the two-way remote control, which synchronizes settings in real time. The SensoMaster M400 receiver offers a range of up to 400 meters, while the Li-ion battery ensures up to 35 hours of autonomy. With IP66 waterproof protection and a special transport lock, you keep your equipment safe in any environment.

Specifications

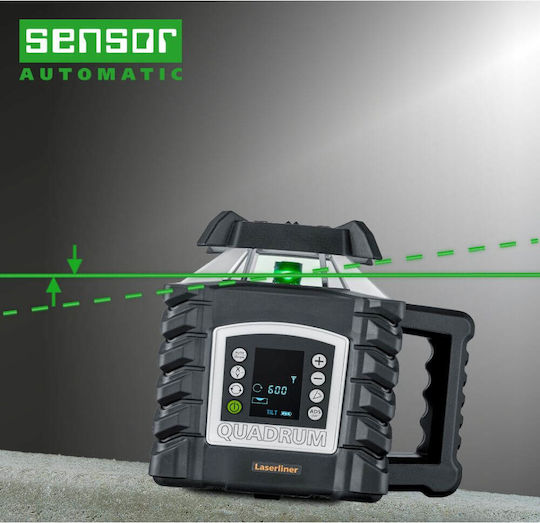

  • Alignment: Automatic horizontal/vertical alignment with electronic levels and motors (precision sensor)
  • Automatic leveling range: ± 6°
  • Accuracy: ± 0.075 mm/m (tilt adjustment accuracy: 0.02%)
  • Laser reception range: Maximum 400 m
  • Laser wavelength: 515 nm (green laser)
  • Laser class: 2 / < 1 mW
  • Laser modes: Point mode, rotary mode, scan mode, handheld receiver mode
  • Tilt functions: Motorized tilt mode (up to 6°), manual tilt mode (above 6°), digital tilt display (%) on X/Y axes

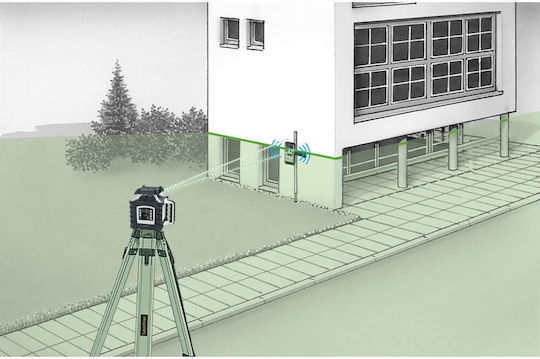

  • Tracking function: Automatic beam alignment with the mm receiver via wireless transmission
  • Safety systems: Anti-Drift-System (ADS), AntiShake, automatic Tilt activation after 20 seconds, motor brake for transport

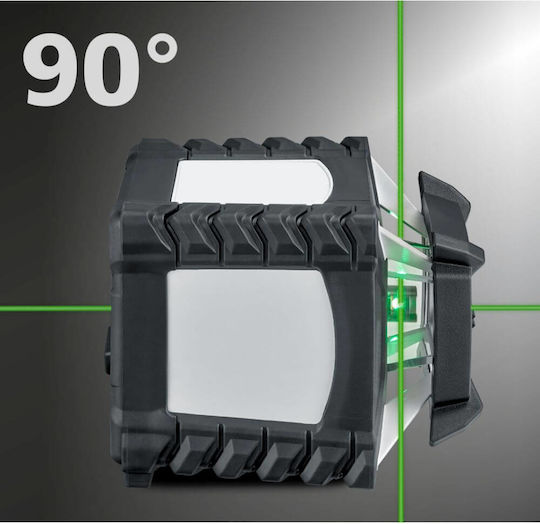

  • Reference beams: Upper (90°) and lower leveling beam
  • Remote control: Two-way with LC display, range up to 50 m

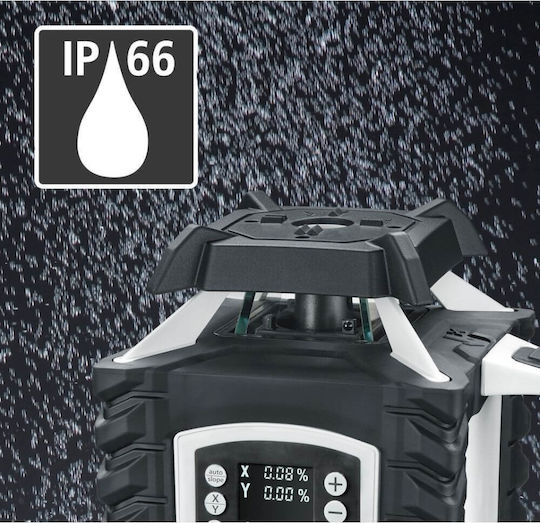

  • Protection class: IP 66 (durable, waterproof housing)
  • Power supply: Li-ion battery 3.7V / 8Ah / 29.6Wh & power supply 5V / DC / 2A (battery and mains operation)
  • Operating time: Approximately 35 hours
  • Battery charging time: Approximately 4 hours
  • Operating conditions: -10°C … 50°C, max. 80% rH (non-condensing), max. altitude 4000 m
  • Storage conditions: -10°C … 70°C, max. 80% rH
  • Dimensions (W x H x D): 215 x 205 x 165 mm
  • Weight: 2400 g (with batteries)

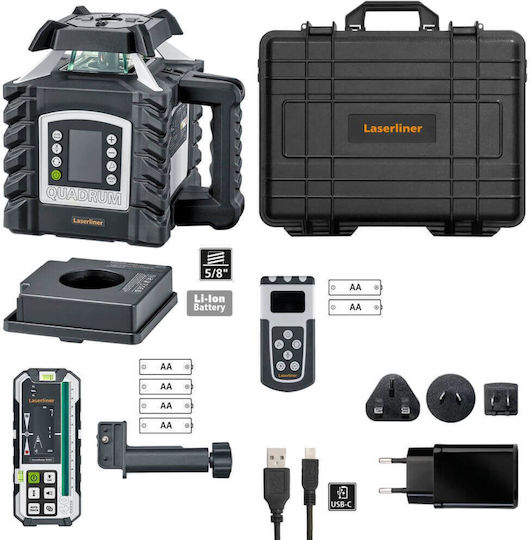

Package Contents

  • Quadrum DigiPlus GT M400 S
  • SensoMaster M400 Set
  • Universal base
  • Remote control
  • Li-ion battery
  • Battery charger/power supply
  • Batteries
  • Carrying case

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Rotary

Type

Rotary
Projects a rotating dot to create a 360-degree line.
Colour of Laser
Green

Colour of Laser

Green

Ideal for outdoor use.
Self-Leveling
No

Self-Leveling

It offers a much higher degree of accuracy and is better when placed on a surface that is as flat as possible.

Beam Specifications

Wavelength
515 nm

Wavelength: 515


Low to medium visibility, suitable for short distances.
Working Range
50 m

Additional Features

Pulsed
No

Pulsed

The laser beam is not continuous, but is emitted in very fast pulses (which are usually not visible to the naked eye). The receiver "detects" the pulsed signal even when the line is not visible (a useful feature for professional use with a receiver and in outdoor environments).

Power Specifications

Battery Type
Built-in Battery
Required Number of Batteries
2
Battery Capacity
8 Ah

Accessories

Tripod
No
Glasses
No
Mount / Bracket
No
Target
No
Receiver
Yes
Remote Control
Yes
Case
Yes
Tripod Base
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
