- Green 360° circle: Full horizontal coverage and vertical line with PowerGreen++ technology for a range of 60m.
- 18V battery compatibility: Flexible operation with 18V systems from various manufacturers via PowerAdapter.
- MicroControl mechanism: High-precision side micro-adjustment without moving the device.

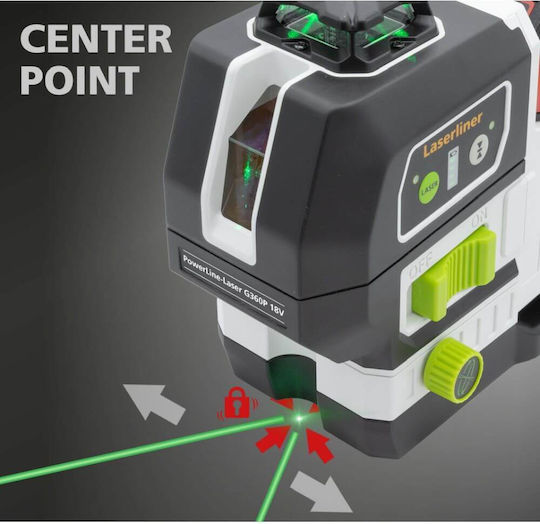

- CenterPoint leveling points: Stable maintenance of floor and ceiling leveling points during adjustment.
At a glance
- Green 360° circle: Full horizontal coverage and vertical line with PowerGreen++ technology for a range of 60m.
- 18V battery compatibility: Flexible operation with 18V systems from various manufacturers via PowerAdapter.
- MicroControl mechanism: High-precision side micro-adjustment without moving the device.
- CenterPoint leveling points: Stable maintenance of floor and ceiling leveling points during adjustment.

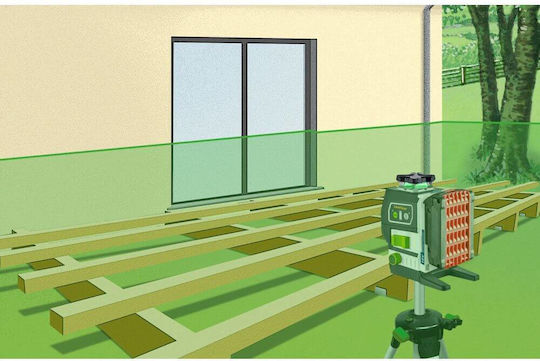

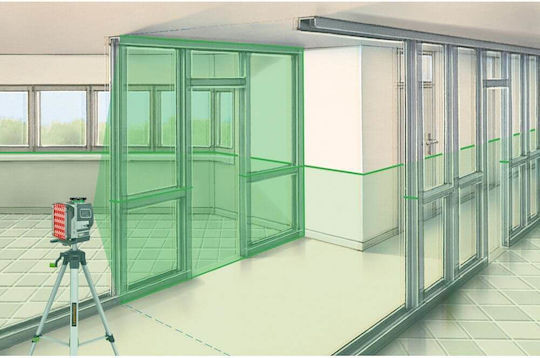

Green 360° Circle & PowerGreen++
When precision in alignment is essential, the 360° horizontal line and the vertical line provide full coverage. PowerGreen++ technology ensures excellent visibility up to 60 meters. This way, you can level the floor and ceiling at the same time with CenterPoint points, carrying out every construction task with complete confidence.
MicroControl & CrossGrip Pro Mechanism

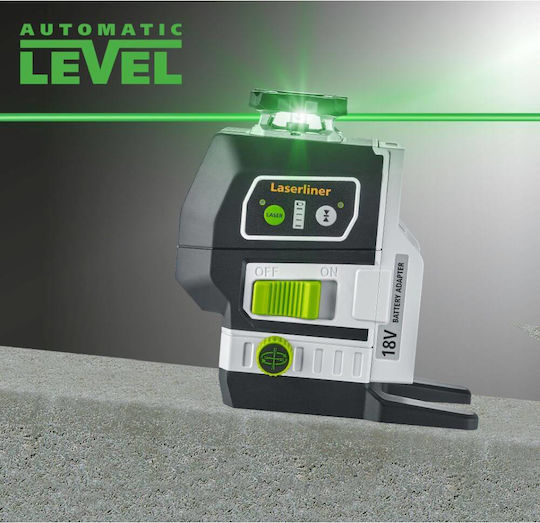

Adjust vertical lines with millimeter precision thanks to the MicroControl side mechanism, without moving the laser. The CrossGrip Pro magnetic base offers flexible attachment to drywall profiles and metal surfaces. At the same time, the automatic leveling of ±3.5° and the manual tilt mode make every measurement easier.

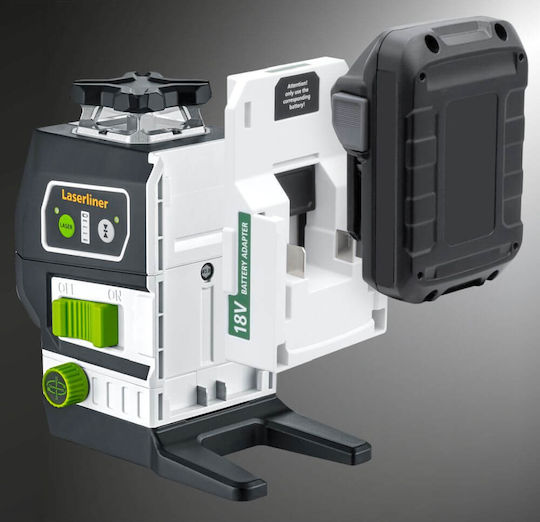

Hybrid Power Supply 18V & L-BOXX
Use the 18V batteries of your equipment through the special PowerAdapter, ensuring up to 20 hours of runtime, or connect directly to mains power. The durable aluminum base offers absolute stability, while the L-BOXX 136 case guarantees safe transport of the tool. You thus get a professional tool with high durability.
Specifications
- Alignment: Horizontal / vertical, automatic
- Automatic leveling range: ± 3.5° (horizontal)
- Accuracy: ± 0.2 mm/m
- Visibility (typical, at max. 300 lux): 60 m
- Laser wavelength: 515 nm (PowerGreen++ green laser)
- Laser class: 2 / < 1 mW
- Functions: 360° horizontal line, vertical line at right angle, plumb beam (up/down), manual tilt mode, MicroControl mechanism, CenterPoint system, hand receiver mode

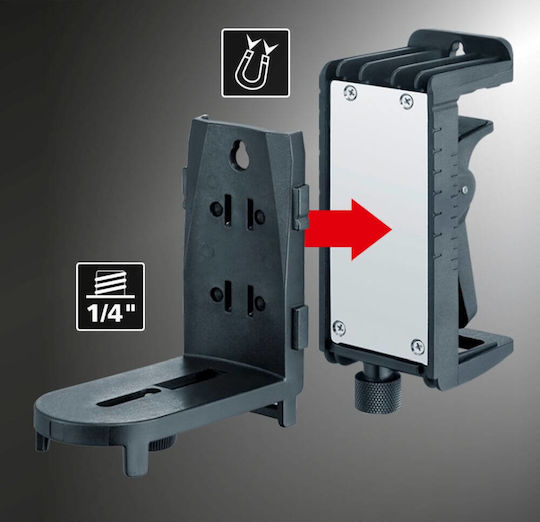

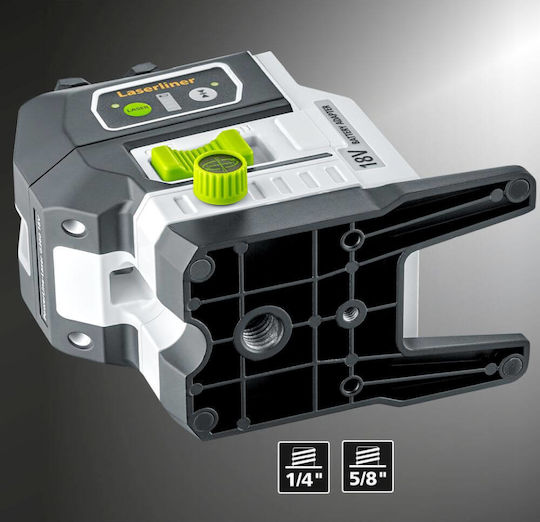

- Base: Durable aluminum base, magnetic CrossGrip Pro clamp & wall mount

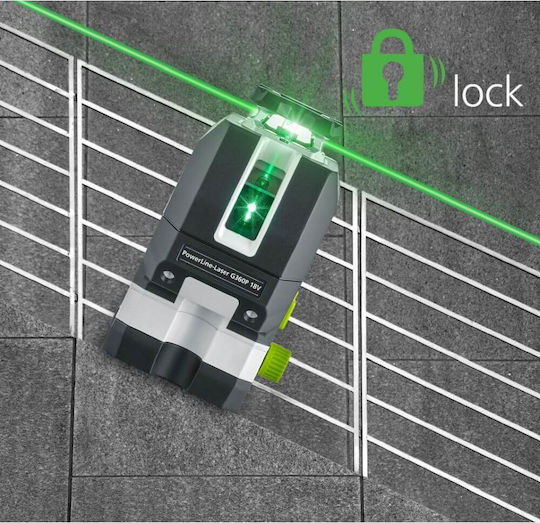

- Safety systems: Compensator lock for transport

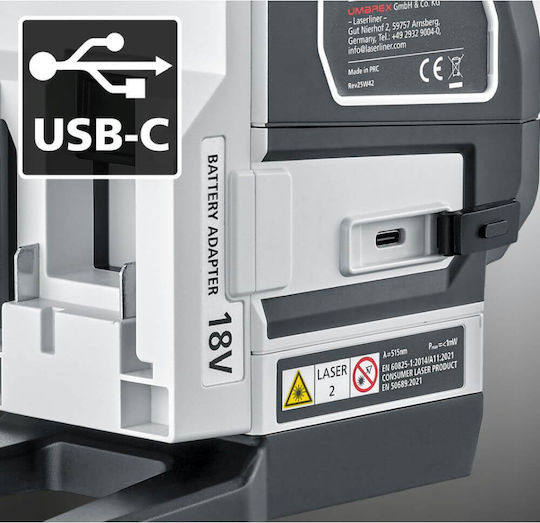

- Power supply: Compatibility with 18V battery systems (via PowerAdapter) & 5V / DC / 2A power supply for continuous operation
- Operating time: Approx. 10 hours (with 18V 2Ah battery) / approx. 20 hours (with 18V 4Ah battery)
- Operating conditions: -10°C … 50°C, max. 80% rH (non-condensing), max. altitude 4000 m
- Storage conditions: -10°C … 70°C, max. 80% rH
- Dimensions (W x H x D): 163 x 158 x 93 mm
- Weight: 800 g (without accessories)

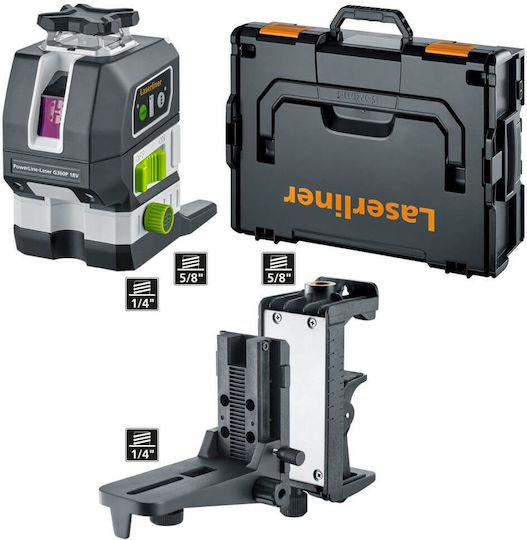

Package Contents
- PowerLine-Laser G360P Multi-18V
- CrossGrip Pro
- L-BOXX 136 (complete carrying case) (Note: The battery and the PowerAdapter are not included)
Dimensions
- Type
- Rotary
- Colour of Laser
- Green
- Self-Leveling
- No
Beam Specifications
- Wavelength
- 515 nm
- Working Range
- 60 m
- Measurement Accuracy
- ±0.2mm/m
Additional Features
- Pulsed
- No
Power Specifications
- Battery Type
- Built-in Battery
- Battery Capacity
- 2 Ah
Accessories
- Tripod
- No
- Glasses
- No
- Mount / Bracket
- No
- Target
- No
- Receiver
- Yes
- Remote Control
- No
- Case
- Yes
- Tripod Base
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
