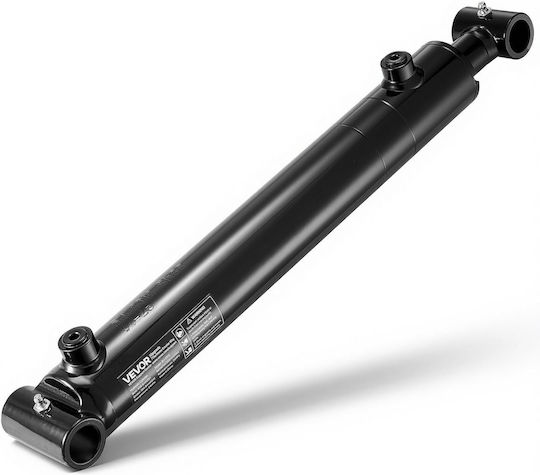

VEVOR double-acting hydraulic cylinder with robust welded cross tube construction, designed for reliable performance in agricultural machinery and push/pull applications.
- Cylinder bore: 2 in / 50.8 mm
- Stroke: 12 in / 305 mm
- Length in retracted position: 20 in / 508 mm
- Length at full extension: 32 in / 813 mm
- Port size: SAE #6 (9/16"-18 UNF)
- Pin hole diameter: 1 in / 25.4 mm
- Maximum pressure: 3500 PSI / 24 MPa
- Rated pressure: 2900 PSI / 20 MPa
- Push force: 4 tons (at 20 MPa)
- Pull force: 2.4 tons (at 20 MPa)
- Column load: up to 4568 lb / 2.07 tons
- Gross weight: 15.7 lb / 7.1 kg
- Model code: BU-2012
Double-acting operation for steady and controlled push and pull movement. Powerful hydraulic performance for demanding applications with a chrome-plated piston rod for increased wear resistance. High-sealing hydraulic system for reduced leaks and durable baked coating for protection against corrosion and harsh use. Suitable for agricultural machinery and other heavy-duty applications.
- Diameter
- 50.8 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
