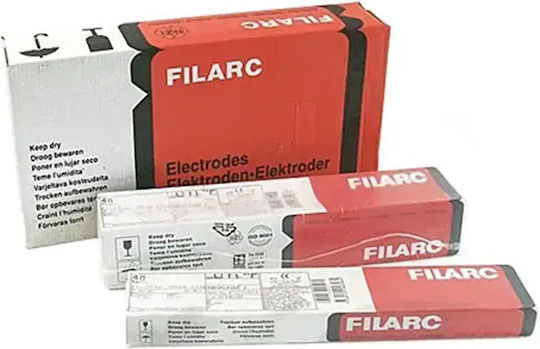

The ESAB FILARC 27P electrodes are low-hydrogen, specifically designed for downhill welding in circular pipe joints. The low-hydrogen content welding metal offers high crack resistance and excellent ductility, reducing the risk of cracks.

They are mainly used in conductors, compression stations, hot tapping, and related projects involving API 5LX52 to X70 grade steel pipes in the oil and gas distribution sectors, as well as in industrial piping systems.

• Classes:
  • SFA/AWS A5.5: E8018-G (closest)
  • EN ISO 2560-A: E 46 4 B 41 H5
• Certifications:
  • ABS: 3Y
  • BV: 3Y H10
  • CE: EN 13479
  • DB: 10.105.03
  • DNV-GL: 3 YH10
  • LR: 4Y40 H10
  • VdTÜV: 02591
  • Seproz: UNA 272581
• Alloy type: Carbon-Manganese
• Coating type: Basic coating
• Welding current: DC+(-)

Typical mechanical properties:

• Condition: As welded
• Yield strength: 560 MPa
• Tensile strength: 610 MPa
• Elongation: 29%

Typical Charpy V-Notch properties:

• As welded, at -40°C: 90 J
• As welded, at -50°C: 70 J

Weld metal composition (%):

• C: 0.08
• Mn: 1.2
• Si: 0.5

Deposit data:

• Diameter 2.5 x 350 mm:
  • Amperage: 80-100 A | Voltage: 25 V
  • Efficiency: 67%
  • Melting rate/electrode: 53 sec
  • Deposit rate: 1.0 kg/h
• Diameter 3.2 x 350 mm:
  • Amperage: 110-150 A | Voltage: 26 V
  • Efficiency: 68%
  • Melting rate/electrode: 53 sec
  • Deposit rate: 1.6 kg/h
• Diameter 4.0 x 350 mm:
  • Amperage: 180-220 A | Voltage: 28 V
  • Efficiency: 74%
  • Melting rate/electrode: 50 sec
  • Deposit rate: 2.8 kg/h
