Atc Hdmi Matrix 4 In 4 Out 60hz 02.001.0132

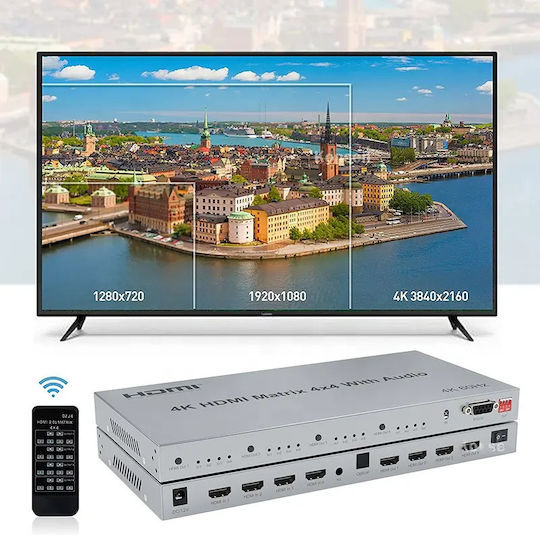

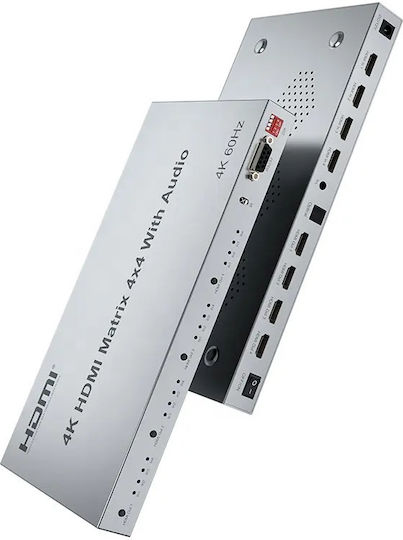

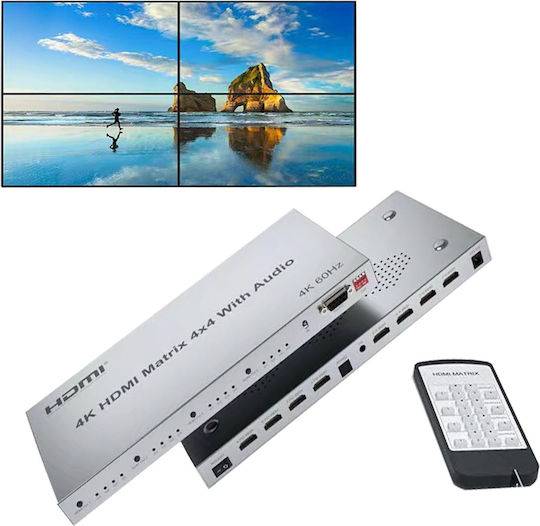

The ATC HDMI Matrix switch routes signals from 4 HDMI sources to 4 displays, supporting resolutions up to 4K x 2K at 60 Hz. Sources and displays can be switched using the front panel, an IR remote...

The ATC HDMI Matrix switch routes signals from 4 HDMI sources to 4 displays, supporting resolutions up to 4K x 2K at 60 Hz. Sources and displays can be switched using the front panel, an IR remote control or RS232, which also supports input and output monitoring and firmware and software updates.

The built-in EDID extractor offers multiple modes, while HDCP...

See full description See full description
116 25 €
Delivery Friday, 06 November
3,50 € to a Skroutz Point or 4,50 € to an address
Do you want it with Free shipping?
Sent from Greece
From Electronhouse 4.8 (3)
What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing

Description

Description

The ATC HDMI Matrix switch routes signals from 4 HDMI sources to 4 displays, supporting resolutions up to 4K x 2K at 60 Hz. Sources and displays can be switched using the front panel, an IR remote control or RS232, which also supports input and output monitoring and firmware and software updates.

The built-in EDID extractor offers multiple modes, while HDCP and DVI compatibility expands connection options. It supports stereo audio and 7.1-channel audio extraction, as well as 3D video. The metal enclosure helps dissipate heat, while plug-and-play operation and a desktop design make it easy to use in home theaters, conference rooms, gaming setups, digital signage and control rooms.

  • Type: 4x4 HDMI Matrix switch
  • HDMI inputs: 4 ports
  • HDMI outputs: 4 ports
  • Maximum resolution: Up to 4K x 2K at 60 Hz
  • Video formats: 4K at 60 Hz, 4K at 30 Hz, 1080P Full HD and 3D
  • HDCP support: Compatible with HDCP standards
  • Audio support: Stereo audio and 7.1-channel audio extraction

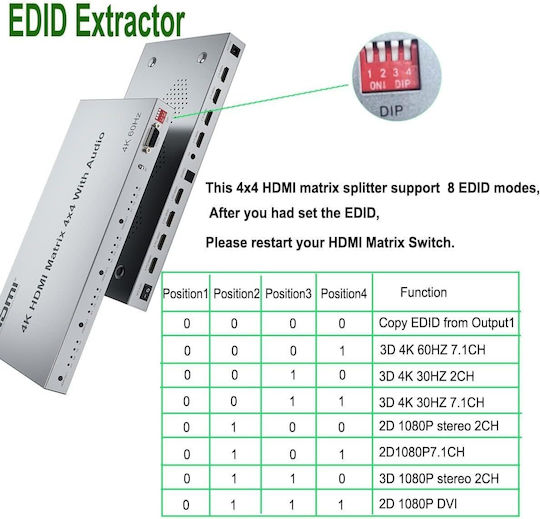

  • EDID modes: Copy EDID from output 1, 3D 4K 60Hz 7.1CH, 3D 4K 30Hz 2CH / 7.1CH, 1080P Stereo 2CH and 1080P 7.1CH

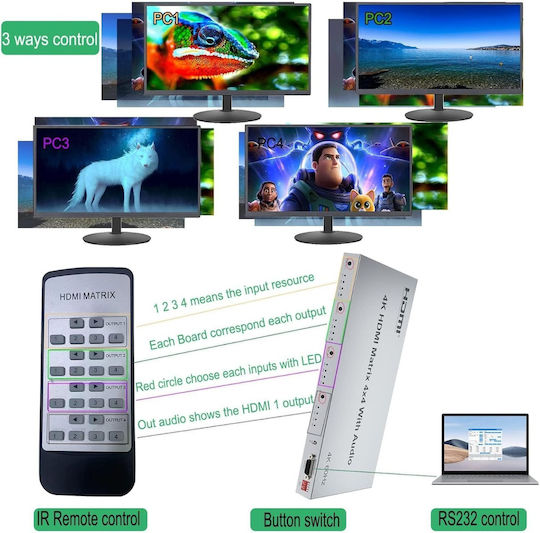

  • Control: Manual control from the front panel, IR remote control and RS232
  • RS232 functions: Signal switching via computer or software, input and output monitoring, firmware and software updates
  • Compatibility: DVI
  • Enclosure: Metal
  • Power supply: External DC adapter
  • Installation: Plug-and-play, desktop design

Manufacturer

See full description

Specifications

Specifications

Type
HDMI Switch

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

4 users have this product and can help you

Ask for the product

Description & Specifications

The ATC HDMI Matrix switch routes signals from 4 HDMI sources to 4 displays, supporting resolutions up to 4K x 2K at 60 Hz. Sources and displays can be switched using the front panel, an IR remote control or RS232, which also supports input and output monitoring and firmware and software updates.

The built-in EDID extractor offers multiple modes, while HDCP and DVI compatibility expands connection options. It supports stereo audio and 7.1-channel audio extraction, as well as 3D video. The metal enclosure helps dissipate heat, while plug-and-play operation and a desktop design make it easy to use in home theaters, conference rooms, gaming setups, digital signage and control rooms.

  • Type: 4x4 HDMI Matrix switch
  • HDMI inputs: 4 ports
  • HDMI outputs: 4 ports
  • Maximum resolution: Up to 4K x 2K at 60 Hz
  • Video formats: 4K at 60 Hz, 4K at 30 Hz, 1080P Full HD and 3D
  • HDCP support: Compatible with HDCP standards
  • Audio support: Stereo audio and 7.1-channel audio extraction
  • EDID modes: Copy EDID from output 1, 3D 4K 60Hz 7.1CH, 3D 4K 30Hz 2CH / 7.1CH, 1080P Stereo 2CH and 1080P 7.1CH
  • Control: Manual control from the front panel, IR remote control and RS232
  • RS232 functions: Signal switching via computer or software, input and output monitoring, firmware and software updates
  • Compatibility: DVI
  • Enclosure: Metal
  • Power supply: External DC adapter
  • Installation: Plug-and-play, desktop design
