The Revopoint reference set is a practical solution that significantly improves the accuracy and stability of 3D scanning. By using markers with specific dimensions and various geometries, the scanner captures more reference points, resulting in better tracking of the object and more precise alignment of successive frames.

Main features:

• Markers with specific sizes and dot arrangements for easier position recognition.
• Pyramidal markers 67 x 55 mm for larger objects.
• Ball-shaped (30 mm) and domed (41 x 22 mm) markers for accurate detail capturing.
• Combination of spatial and linear markers for greater flexibility.
• Magnetic mounting with 8 mm diameter markers.

The set is compatible with most Revopoint 3D scanners, including POP, POP 2, POP 3, RANGE, RANGE 2, INSPIRE, MIRACO, MIRACO Pro, and MetroX series, as well as for laser operations. It allows for quick overview scans and precise mechanical projects.

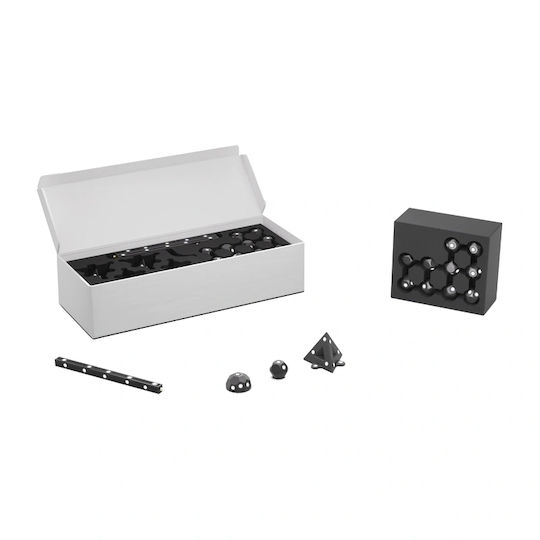

Package contents:

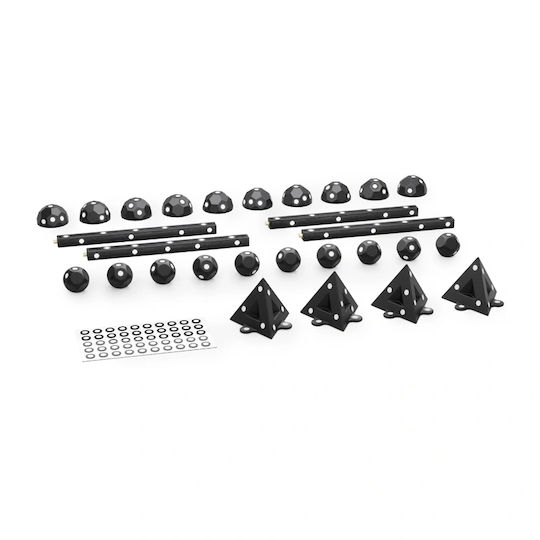

• 10 x ball marker (magnetic)
• 10 x domed marker (magnetic)
• 4 x pyramidal marker (magnetic)
• 4 x marker strip (205 mm)
• 500 x adhesive marker (6 mm / 10 mm)

Technical specifications:

• Material: PP plastic
• Ball marker – diameter: 30 mm
• Ball marker weight: 15 g / pc.
• Dome dimensions: 41 mm (diameter) x 22 mm (height)
• Pyramid marker – dimensions: 67 mm (base) x 55 mm (height)
• Rod marker – dimensions: 12 x 12 x 205 mm
