Description
Specifications
Audio master A600
Professional power amplifier with the following key specifications:
- Output capacity: 2x1200W RMS at 2Ω, 2x900W RMS at 4Ω, 2x600W RMS at 8Ω
- Bridge: 1x1800W RMS at 8Ω, 1x2400W RMS at 4Ω
- Operation: class H
- Input sensitivity: 0.775V, 1V, 1.4V
- Distortion: <0.05%@8Ω 1KHz
- Equipped with Limiter and 30Hz high & low pass filter

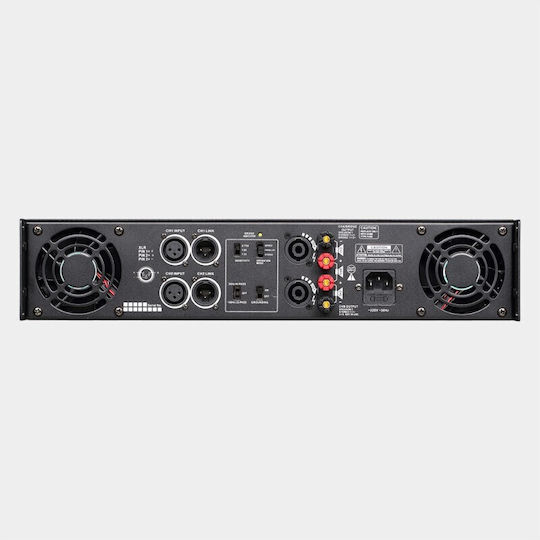

- Inputs: XLR & link XLR, Outputs: speakon & binding posts for bare wire
- Variable speed fans
- Protection: soft start circuit, DC faults, overheating protection, overload and short circuit protection
- Dimensions (HxWxD): 88x482x425mm
- Weight: 20 kg
Recommended for use where high quality and reliable operation are required.
Manufacturer
OEMTechnical Specifications
- Amplifier Type
- PA Amplifier
- Type
- Power Amplifier
- Channels
- 8
- Zones
- 6
- Power (8Ω)
- 600 watt / channel
- Power (4Ω)
- 1800 watt / channel
- Power (100V)
- -
- Class
- H
- Weight
- 20 kg
Additional Specifications
- Radio
- No
- Cooling system
- Yes
Connectivity
- RCA
- No
- XLR
- Yes
- Mini Jack (3.5mm)
- No
- Jack (6.3mm)
- No
- USB
- No
- Ethernet
- No
- Bluetooth
- No
- Mic In
- No
Dimensions
- Width
- 88 mm
- Height
- 482 mm
- Length
- 425 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
