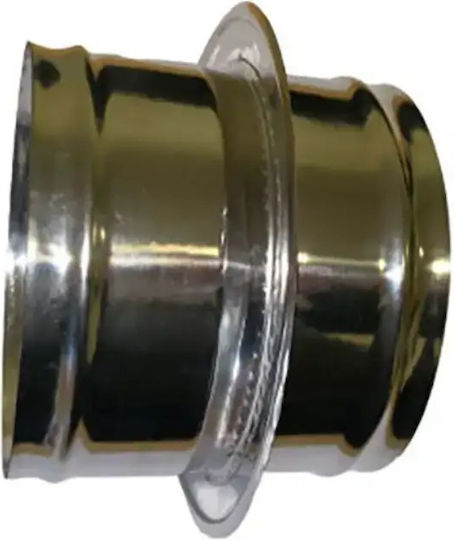

The single-wall to double-wall female reducer connects a single-wall flue pipe to a double-wall fitting. It is made of AISI 304 BA stainless, non-magnetic steel and is recommended for outdoor installation with pellet appliances, oil and gas boilers, high-efficiency fireplaces and stoves.
Its construction features autogenous welding and male-female forming. Sealing is provided by a 200 °C thermosilicone gasket. It has been tested for CE marking in accordance with EN 1856-1 and EN 1856-2.
- Type: Single-wall to double-wall reducer
- Connection: Female
- Diameter: Ø150/200
- Material: AISI 304 BA stainless, non-magnetic steel
- Steel thickness: 0.40 mm
- Insulation: Ceramic wool, 25 mm thick, density 96 kg/m³
- Sealing: With a 200 °C thermosilicone gasket
- Continuous temperature resistance: Up to 600 °C
- Short-term temperature resistance: Up to 800 °C
- Certification: CE compliant with EN 1856-1 and EN 1856-2
- Product Number
- PT542946
- Type
- Reducers
- Material
- Inox
- Colour
- -
- Diameter
- 150 mm
