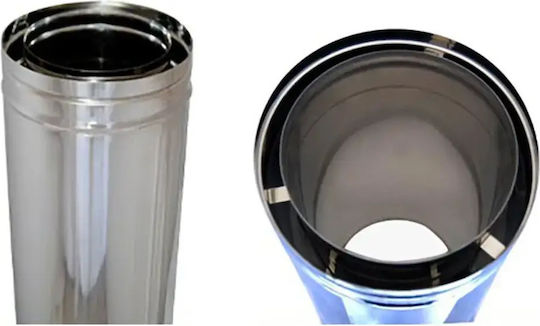

Concentric Double-Wall Stainless Steel Chimney Pipe
The concentric double-wall chimney pipe is made from stainless, non-magnetic steel AISI 304 BA. The chimney has undergone the required inspections and meets all the conditions of CE marking requirements, in accordance with EN 1856-1 and EN 1856-2.
The certification has been issued by the recognized body Dedal – Attestation and Certification Ltd., and quality control has been conducted through SGS TUV SAAR’s ISO 9001:2015 management systems.
Available diameters:
- Φ80/130
- Φ100/150
- Φ130/180
- Φ130/200
- Φ150/200
- Φ180/230
- Φ200/250
- Φ230/300
- Φ250/300
- Φ300/350
Available straight lengths:
- 0.25m
- 0.50m
- 1.00m
General features:
- Self-welding of pipes and fittings.
- Male – female configuration.
- Steel thickness: 0.40 mm.
- Easy assembly of pipes.
- Sealed with 200°C silicone gasket.
- Maximum flue gas temperature at the device outlet: 200°C.
It is recommended to use the concentric double-wall chimney pipe for gas energy fireplaces and oil boilers.
- Product Number
- PT952984
- Type
- Gasket
- Material
- Inox
- Colour
- -
- Diameter
- 80 mm
