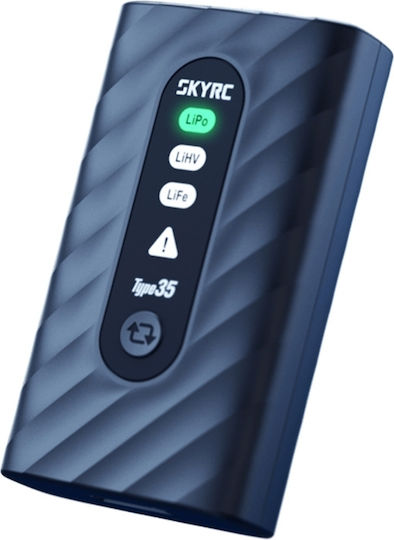

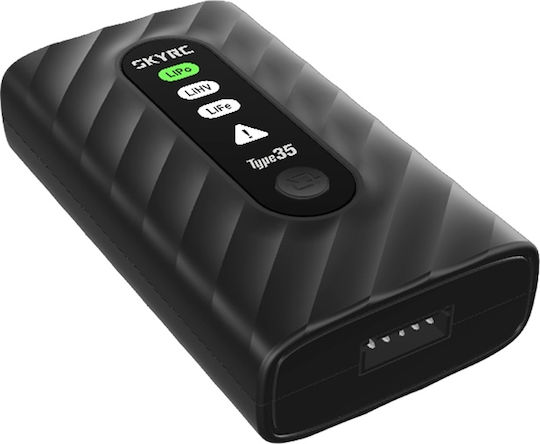

SkyRC Type35 2-4S Lithium Battery Charger

The SkyRC Type35 2-4S is a modern charger designed for lithium batteries. It supports LiPo, LiHV, and LiFe batteries in 2-4S configurations, offering a maximum charging power of up to 35 W and current up to 2 A. Thanks to USB-C Power Delivery (9-20 V) input, it can be used in a variety of environments.

• Compact design: Dimensions 84 x 48 x 22 mm and weight approximately 53 g.
• Safe charging: Intelligent temperature control and precise cell balancing.
• Multifunctional power supply: Supports charging through the balance port.
• Fast charging: Charging up to 35 W for rapid battery readiness.
• Operation in a wide temperature range: Operates from 0°C to 40°C and stores at -10°C to 70°C.
• User-friendly indicator: Tricolor LED showing the current charging status.

Included: Charger, User Manual

General specifications:

• Manufacturer: SkyRC
• Model: Type35
• Product type: Lithium battery charger
• Supported battery types: LiPo, LiHV, LiFe
• Supported cell count: 2-4S
• Charging method: Charging through balance port
• Status indication: Tricolor LED
• Dimensions: 84 x 48 x 22 mm
• Weight: Approximately 53 g

Technical specifications:

• Input voltage: USB-C PD3.0, 9-20 V
• Maximum charging power: 35 W
• Charging current: Max. 2 A
• LiPo charging voltage: 4.20 V/cell
• LiHV charging voltage: 4.35 V/cell
• LiFe charging voltage: 3.65 V/cell
• Balancing current: max. 300 mA
• Power consumption in standby mode: max. 0.8 W
