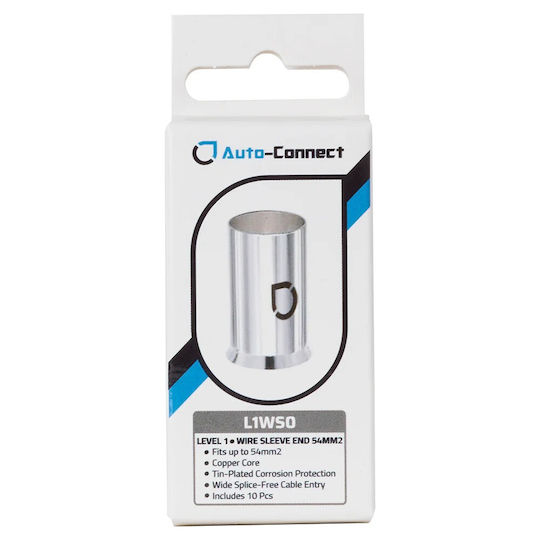

L1WS0 is a pack of 10 non-insulated wire ferrules, designed for strong and neat cable terminations. These ferrules support cables up to 54 mm² (0 AWG) and help maintain clean and consistent conductor ends during installation.

• 54 mm² / 0 AWG wire ferrules
• 10 pieces per pack
• Copper core
• Tinned for corrosion protection
• Funnel-shaped entry for easier cable insertion
• Improves contact between conductor and ferrule
• Suitable for crimping or direct clamping on terminals

Non-insulated wire ferrules reduce strand spreading and conductor damage when terminating power or speaker cables into screw or clamp terminals. By enclosing the bare conductor, the ferrule creates a uniform contact surface that improves electrical conductivity and mechanical stability. This allows the cable to be installed, removed, and reinstalled without wear or damage. Finishing with tape or heat shrink provides strain relief and insulation where required.

Specifications

• Length: 19.6 mm
• Outer diameter: Ø 10.9 mm
• Inner diameter: Ø 10.5 mm
