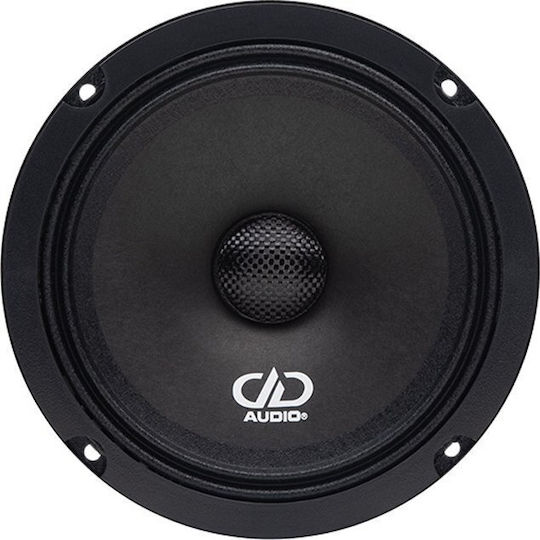

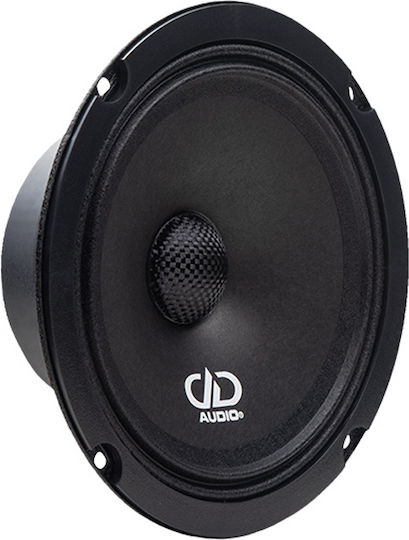

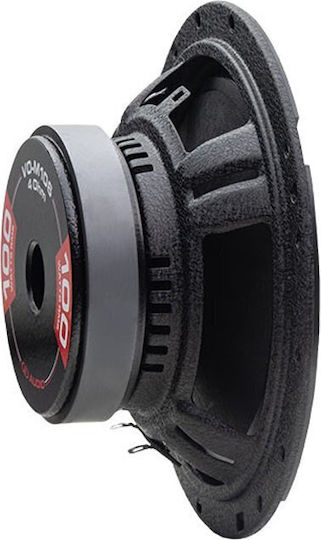

The VO-M100 series includes speakers of higher efficiency and fidelity, optimized for maximum performance while using minimal RMS power. The Y35 magnet system uses Faraday short-circuit rings to reduce distortion and extend frequency range. The voice coil is wound from CCA wire with a diameter of 30 mm, increasing long-term thermal performance and overall sensitivity. The waterproof cone material is made from synthetic resin, and the dust cap is made from carbon fiber, glued onto the voice coil mold to extend the natural clarity at high frequencies. All these elements are combined in a shallow basket structure to enable installation in many factory (OEM) applications.
Technical Specifications:- Driver Size - 6.5″
- 100 Watts RMS
- VCD - 1.25″
- Impedance - 4 Ohm
- Frequency Response - 120Hz - 20kHz
- 130 Fs - Hz
- Qms 12.55
- Qes 1.34
- Qts 1.21
- Vas 4.5 - liters
- Xmax 4 mm
- Suspension travel 12 mm
- dBSPL 98
- BL 4.4
- Mounting Diameter 142 mm
- Mounting Depth 63 mm
- Product Number
- 10.00.00309
Dimensions
- Type
- Midrange
- Shape
- Round
- Round Speakers Diameter
- 6.5 "
Technical Specifications
- Power (RMS)
- 100 W
- Nominal Impendance
- 4 ohm
