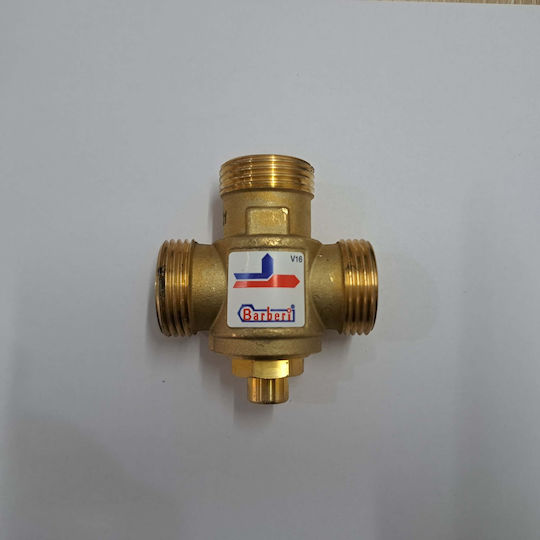

Thermostatic Diverter Valve Barberi – Made in Italy
The thermostatic diverter valve allows for management of hot water by diverting water from the solar system or boiler. When the temperature exceeds 45 °C, the water is directed for use; otherwise, it is diverted to the quick-heater or boiler to increase the temperature.
Advantages:
- Ensures hot water availability (HW) and more economical production.
- Suitable for drinking water systems and solar thermal installations.
Technical Features:
- Maximum and minimum operating temperature: 5 °C – 100 °C
- Maximum operating pressure: 10 bar
- Accuracy of mixing water temperature: ± 2 °C

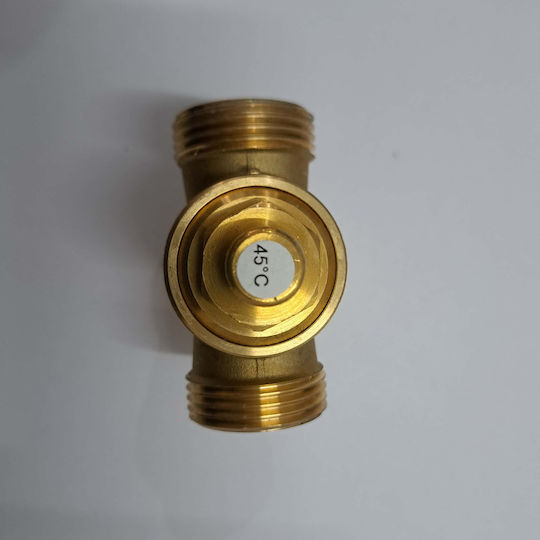

- Division valve setting temperature: 45 °C (± 2 °C)
- Flow coefficient: Kv 3.5
- Suitable fluids: water for heating systems, water with glycol (max 30%), drinking water
- Connections in circuits: Male threaded connections 1''
- ISO 228/1
- Product Number
- V16M2500A
Dimensions
- Type
- Thermostat
- Compatibility
- for Boiler
- Construction Material [Pharmaceutical]
- -
- Smart / WiFi
- -
Technical Parameters
- Thread / Cross-section
- -
- Power
- -
- Maximum Pressure
- -
