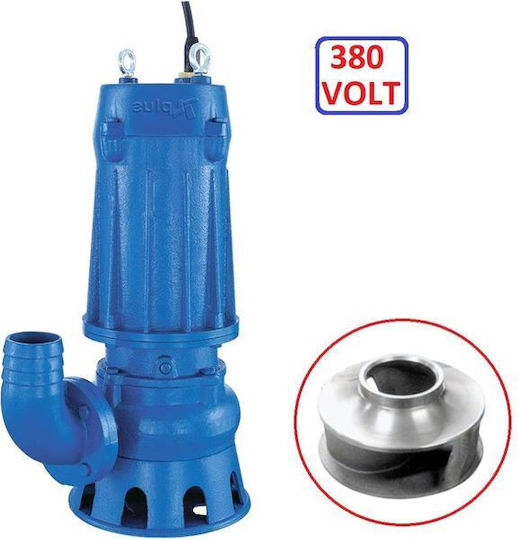

Plus WQ 80-4-87-20 Three-Phase Waste Water / Sewage Pump 5.33hp 230317
Submersible Water Pumps

Plus WQ 80-4-87-20 Three-Phase Waste Water / Sewage Pump 5.33hp 230317

Key features:

  • Motor Power: 4 kW (5.5 HP)
  • Operating Voltage: 400 V (Three-phase)
  • Discharge Outlet: 80 mm (3")
See full description

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Three-Phase

    It is mainly used for pumps and other industrial devices that require greater power or higher efficiency. Three-phase power supply is ideal for large installations or applications with increased energy demands.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

  • Manometric Height

    20

    The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

    • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
    • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
  • See all
382 93 €
Delivery Thu, 16 Jul - Mon, 20 Jul
61,00 € shipping cost
Do you want it with 56,00 € shipping?
Sent from Greece
From Thermocity 4.8 (67)
4.8 (67 reviews)
Greece
20+ pieces
See Water Pumps on the page of Thermocity
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

At a glance

The electric pump PLUS WQ 80-4-87-20 is designed for demanding applications in sewage networks, biological treatment plants, and basement drainage with a high concentration of solid particles. With a cast iron body and a powerful three-phase motor, it ensures long service life even under continuous operation conditions.

Its design allows the passage of solids without clogging the impeller, while its high flow rate makes it ideal for situations where large volumes of water need to be transferred in a short period of time.

Features & Functions

  • Robust Construction: The pump body and impeller are made of high-strength cast iron, offering excellent resistance to corrosion and abrasion.

  • Double Mechanical Seal: Features an advanced sealing system in an oil chamber, fully protecting the motor from water ingress.

  • High Flow Rate & Head: With a maximum flow rate reaching 87 m³/h and a head up to 20 meters, it covers large elevation differences and distances.

  • Easy Installation: Equipped with an 80mm (3") discharge outlet and a sturdy handle for easy suspension with a chain or rope at the bottom of the well.

  • Professional Performance: The 4kW (5.5 HP) motor is designed for three-phase supply, offering high starting torque and stable performance under load.

Specifications

  • Manufacturer / Model: PLUS / WQ 80-4-87-20
  • Code (PN): 230317
  • Motor Power: 4 kW (5.5 HP)
  • Operating Voltage: 400 V (Three-phase)
  • Discharge Outlet: 80 mm (3")
  • Maximum Head (H): 20 m
  • Maximum Flow Rate (Q): 87 m³/h
  • Type of Solids: Sewage / Wastewater

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Three-Phase

Voltage

Three-Phase

It is mainly used for pumps and other industrial devices that require greater power or higher efficiency. Three-phase power supply is ideal for large installations or applications with increased energy demands.
Horsepower
5.33 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
3997.5 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
No

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Outlet Nozzle
3"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Head Height
20 m

Maximum Head Height: 20


The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

  • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
  • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
Maximum Output
87 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).
Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
