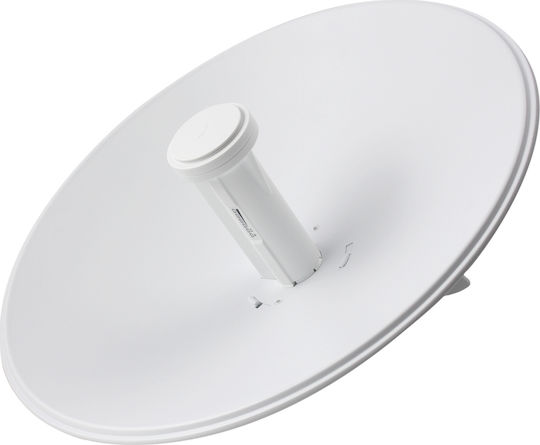

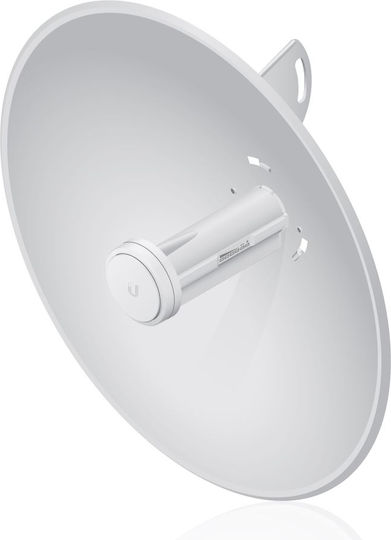

UBIQUITI UISP airMAX PowerBeam M5 400 mm Bridge, 5GHz, 25dBi

Τεχνικά Χαρακτηριστικά:

• Enclosure material: UV-stabilized plastic
• Mounting: Pole mount kit (Included)
• Wind survivability: 200 km/h (125 mph)
• Wind loading: 342.5 N @ 200 km/h (77 lbf @ 125 mph)
• Networking interface: (1) 10/100/1000 MbE port
• Power method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Power supply: 24V, 0.5A Gigabit PoE adapter (Included)
• Max. power consumption: 8W
• Max. TX power: 26 dBm
• Gain: 25 dBi
• ESD/EMP protection: Air/contact: ± 24 kV
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs: Software-adjustable to correspond to custom RSSI levels
• Salt fog test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G method 509.5
• Vibration test: IEC 68-2-6
• Temperature shock test: IEC 68-2-14
• UV test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
• Wind-driven rain test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5
• Operating temperature: -40 to 70° C (-40 to 158° F)
• Operating humidity: 5 to 95% noncondensing
• Gain: 22 dBi
• Channel sizes: 5/8/10/20/30/40 MHz
• Polarization: Dual linear
• Operating Frequency (MHz): 5170 - 5875 MHz
• Dimensions: 420 x 420 x 275 mm
• Weight: 1.75kg

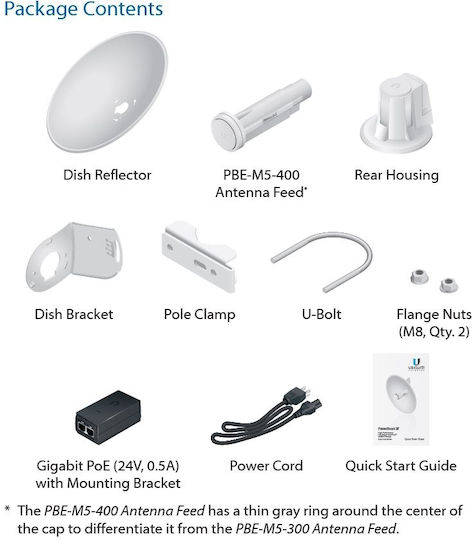

Περιεχόμενα συσκευασίας:

• Reflector Antenna
• Feed
• Rear Housing
• Mounting Bracket
• Pole Clamp
• U-Bolt
• 2x Flange Nuts
• Gigabit PoE (24V, 0.5A) with Mounting Bracket
• Power Cord
