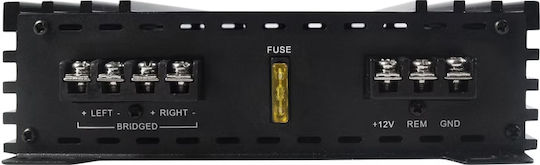

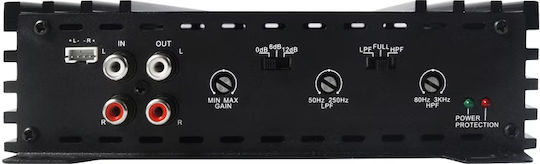

The Zapco car amplifier is a 2-channel model with full-range Class AB amplification. It supports a 4 Ω load in bridged mode or a 2 Ω load in stereo mode, and features MOSFET power supply and RCA and factory speaker-level inputs.
The input gain, FULL/LP/HP electronic crossover, and bass boost are adjustable.
- Channels: 2
- Amplifier class: Class AB
- Power at 4 Ω: 2 x 65 W
- Power at 2 Ω: 2 x 90 W
- Power at 4 Ω in bridged mode: 1 x 180 W
- Load stability: 4 Ω in bridged mode or 2 Ω in stereo mode
- Power supply: MOSFET
- Inputs: RCA and factory speaker-level
- Input gain: Adjustable
- Electronic crossover: Adjustable FULL/LP/HP
- Bass boost: Adjustable
- Harmonic distortion at rated power: 90 dB
- Channel separation: > 45 dB
- Frequency response: 10 Hz to 30,000 Hz ±1 dB
- Net dimensions: 182 x 52 x 200 mm (W x H x D)
- Overall dimensions: 182 x 52 x 230 mm (W x H x D)
- Product Number
- 31.00.0006
- Number of Channels
- 2 Channels
- Output Power (4 Ohm)
- -
- Amplifier class
- -
