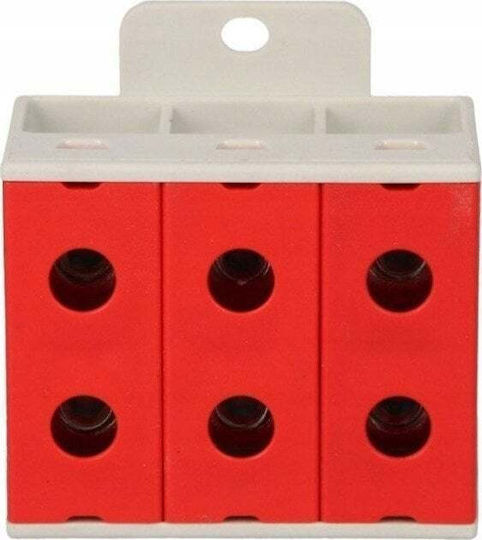

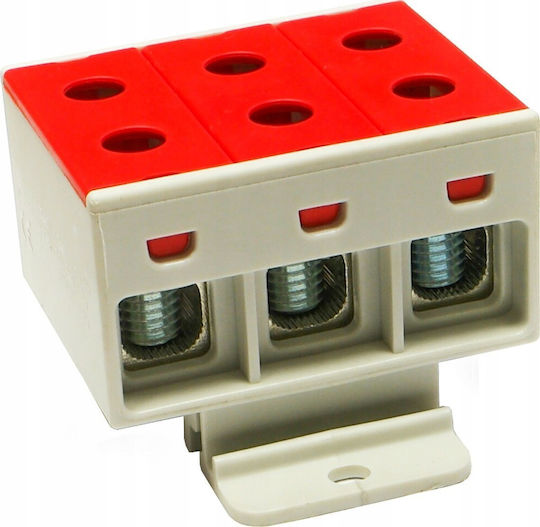

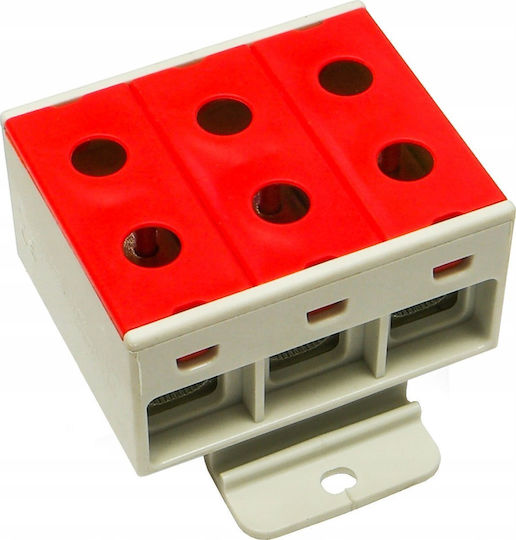

The Incobex ZGX 3x50 three-pole copper bridge connects conductors with cross-sections from 1.5 to 50 mm². It has six connection holes with screw-type hexagonal terminals and can be mounted on a TH-35 mm DIN rail or directly on a mounting plate.
- Type: Rail-mounted
- Poles: 3
- Connection holes: 6
- Conductors: Cross-sections from 1.5 to 50 mm²
- Electrical connection: Screw
- Connection position: Side
- Terminals per level: 2
- Rated current: 160 A
- Rated voltage: 690 V
- Insulating material: Halogen-free PA6 thermoplastic
- Flammability class: UL V-0
- Certification: EN 60947-7-1:2012
- Width: 54 mm
- Height: 43 mm
- Length: 63 mm
- Color: Red
- Type
- Busbar
