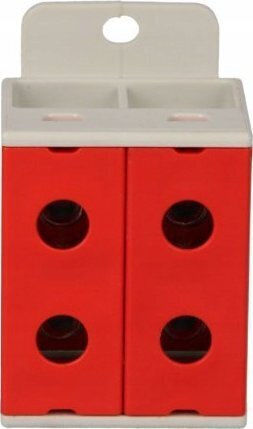

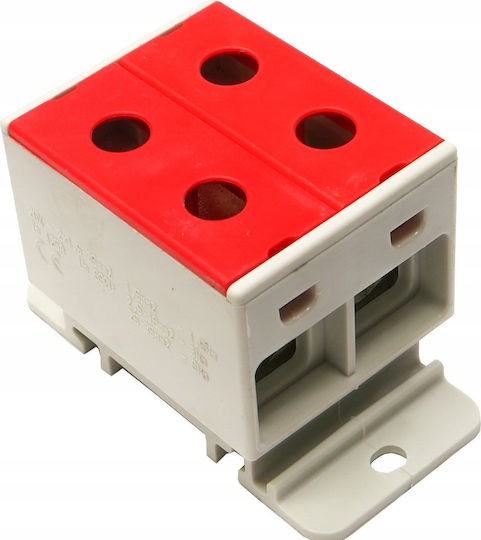

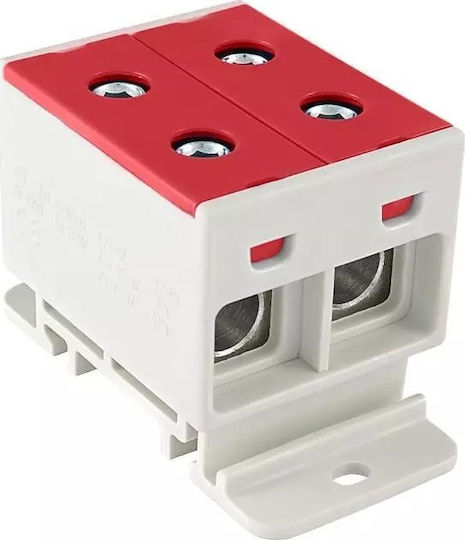

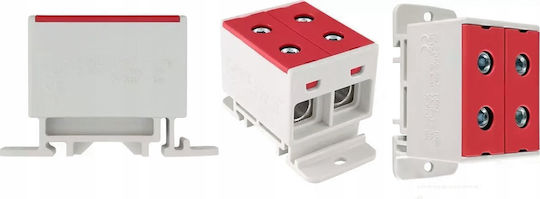

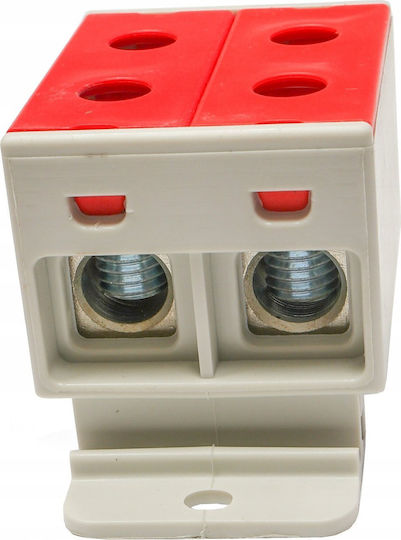

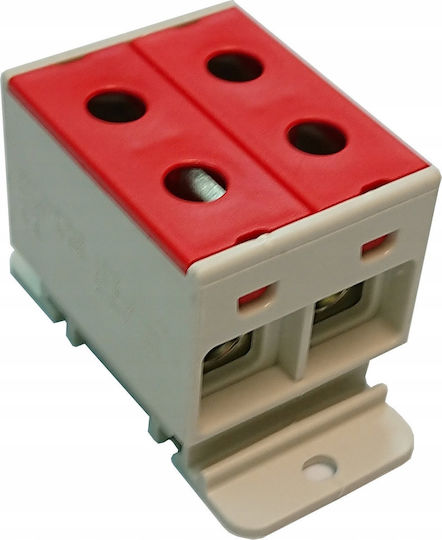

The Incobex ZGX-2x35 copper bridge connects conductors with cross-sections of 1.5–35 mm² and features a two-pole, screw-type design. It can be mounted on a TH 35 rail or a flat surface. Its housing is made of halogen-free PA6 and has a UL V-0 flammability rating.
The hexagonal clamps and engraved parameter and tightening torque markings make installation easier.
- Conductor cross-section: 1.5–35 mm²
- Rated current: 125 A
- Rated voltage: 690 V
- Connection type: Screw-type
- Connection position: Lateral
- Number of poles: 2
- Levels: 2
- Terminals per level: 2
- Mounting: On a 35 mm TH-35 DIN rail or a flat surface
- Housing material: Halogen-free PA6
- Flammability rating: UL V-0

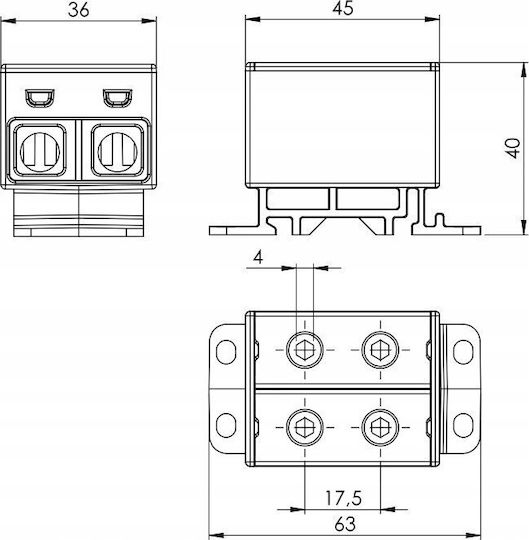

- Width / pitch: 36 mm
- Height: 40 mm
- Length: 63 mm
- Colour: Red
- Standard: EN 60947-7-12012
- Type
- Busbar
