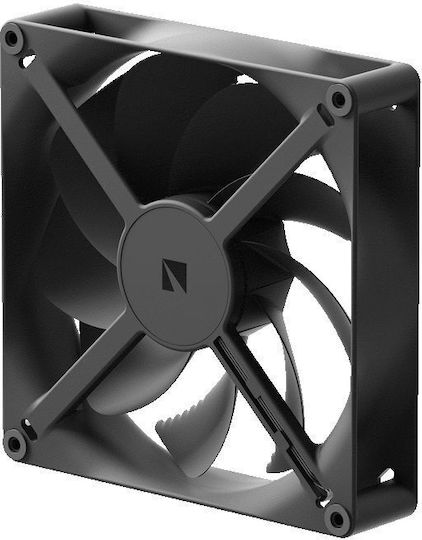

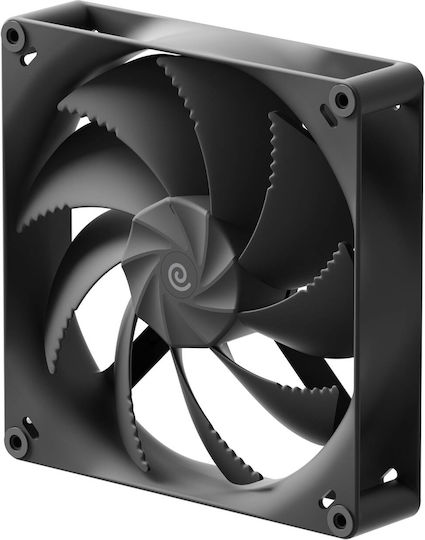

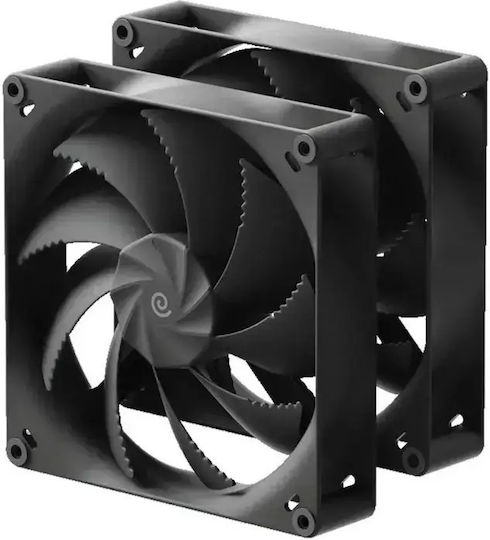

The HAVN H18 fan measures 180 mm in diameter and features wavy blades that help maintain steady airflow while reducing turbulence and noise. It reaches speeds of up to 1,300 rpm and is PWM-controlled, with a static pressure of 2.19 mmH₂O. It can be used on radiators or mesh front panels.
The frame is 40 mm high and made of glass-fiber-reinforced plastic. The triple-groove FDB bearing and rubber corner pads help ensure smooth operation and reduce vibration. The Loopin system routes cables internally through the frame and allows multiple fans to be connected in sequence.
- Dimensions: 180 × 180 mm
- Height: 40 mm
- Fan speed: up to 1,300 rpm
- Airflow: up to 279.71 m³/h
- Static pressure: 2.19 mmH₂O
- Noise level: up to 35 dB(A)
- Connection: 4-pin (PWM)
- Operating voltage: 12 V
- Color: Black
- Quantity: 1
Main Specifications
- Dimension
- 180 mm
- Colour
- Black
- Packaging
- 1 pcs
Technical Specifications
- Fan Speed (Max)
- 1300 rpm
- Noise Level (Max)
- 35 dB
- LED Color
- RGB
- Reverse Blade
- No
- Air Pressure
- 2.19 mmH₂O: millimeters of water
