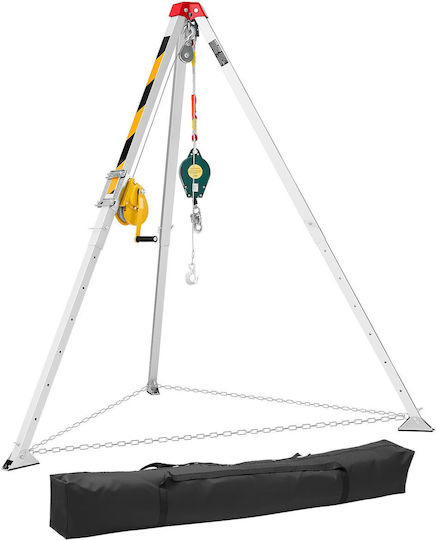

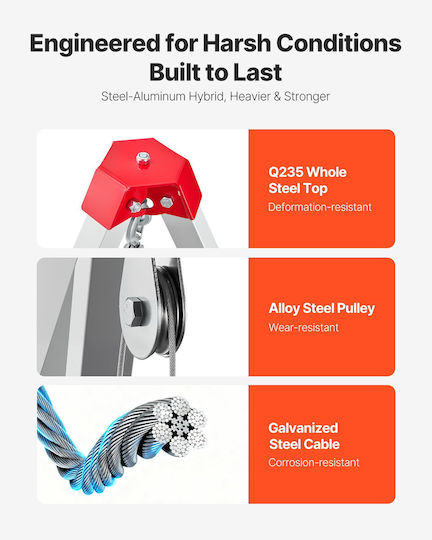

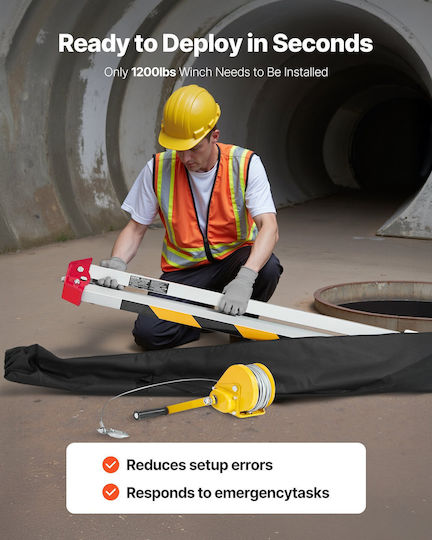

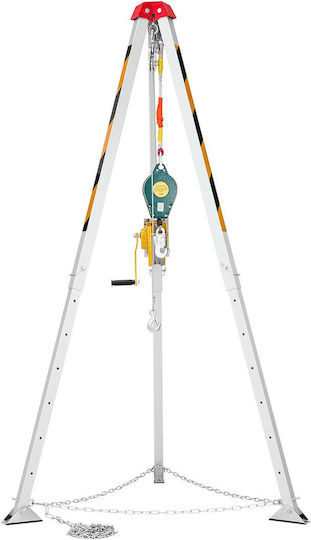

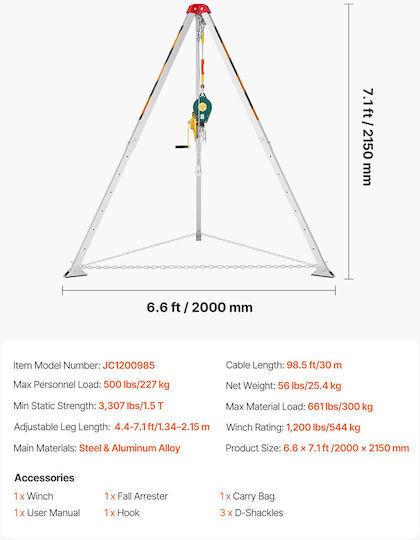

The Vevor load transport and lifting system includes a tripod for working in confined spaces, with a pre-assembled design for quick deployment. The frame combines steel and aluminum alloy, while the galvanized cable, alloy pulley, and welded Q235 head are designed for use in damp and abrasive conditions.

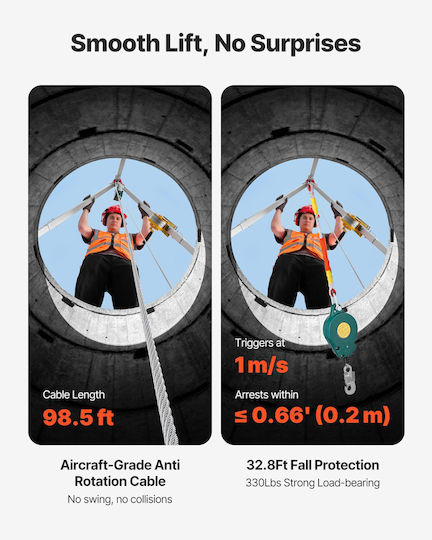

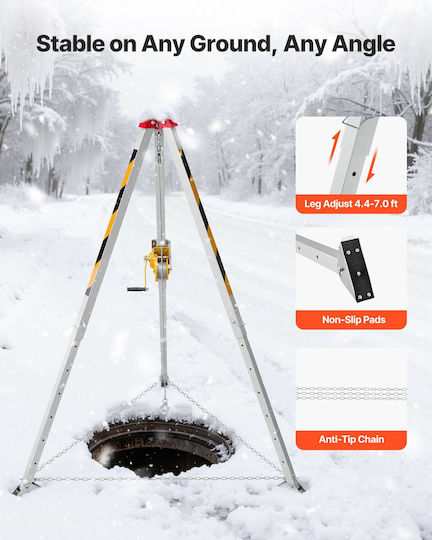

The adjustable legs, anti-tip chain, and all-terrain feet provide a stable base on mud, snow, asphalt, and sloped or uneven ground. The anti-rotation cable limits swinging and contact with walls, while the fall arrester engages to stop descent and reduce impact.
- Winch capacity: 544 kg
- Maximum material load: 300 kg

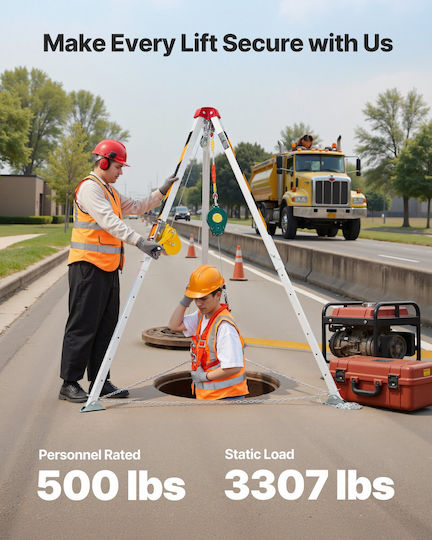

- Maximum personnel load: 227 kg
- Minimum static strength: 1.5 t
- Materials: Steel and aluminum alloy
- Cable length: 30 m
- Adjustable leg length: 1.34–2.15 m
- Dimensions: 1670 x 1670 x 2185 mm
- Weight: 25.4 kg
- Features: High-visibility reflective strips, reinforced safety strap, adjustable legs, anti-tip chain, all-terrain feet, anti-rotation cable, and fall arrester
- Certifications and standards: CE, ANSI/ASSP Z359.4-2013, OSHA 1926.502/1910.66, AS/NZS 1891.1/1891.4
- Max Load Capacity
- 544 kg
- Collapsible
- No
