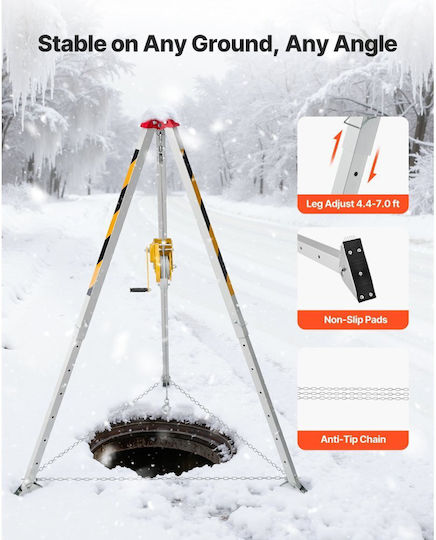

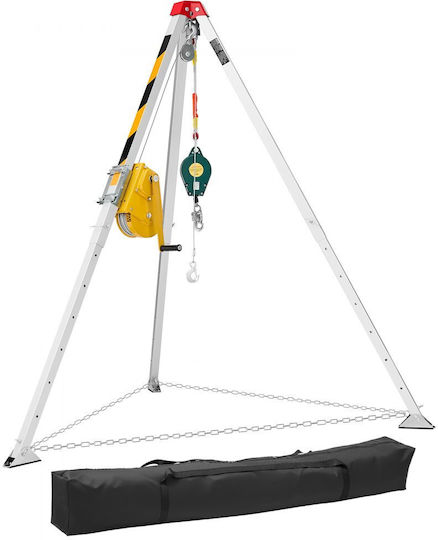

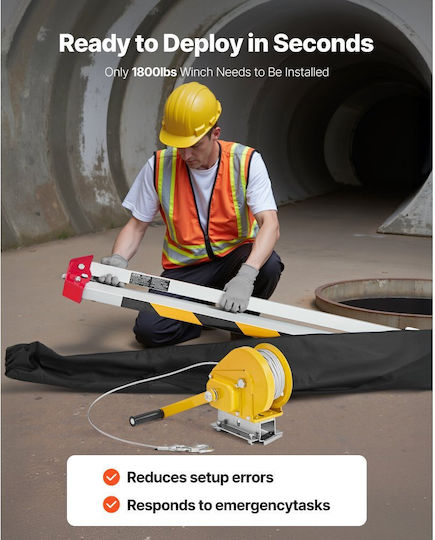

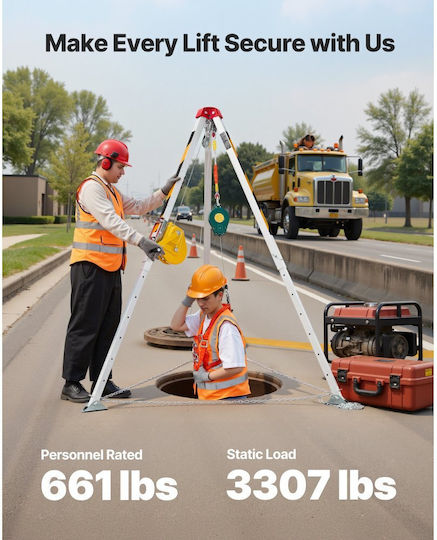

The Vevor load transfer and lifting system consists of a tripod for confined spaces and a winch with a rated load capacity of 816 kg. Its pre-assembled design speeds up setup, while the adjustable legs and anti-tip chain help ensure stability on uneven ground.

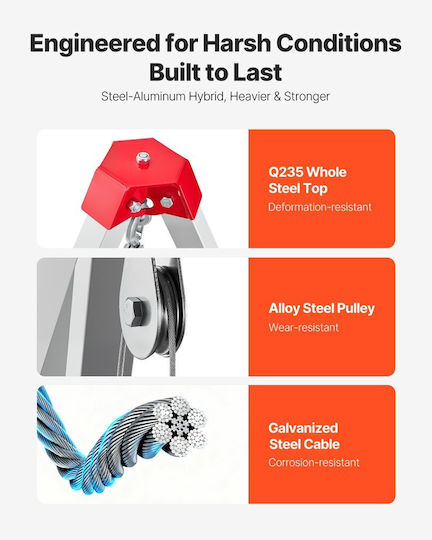

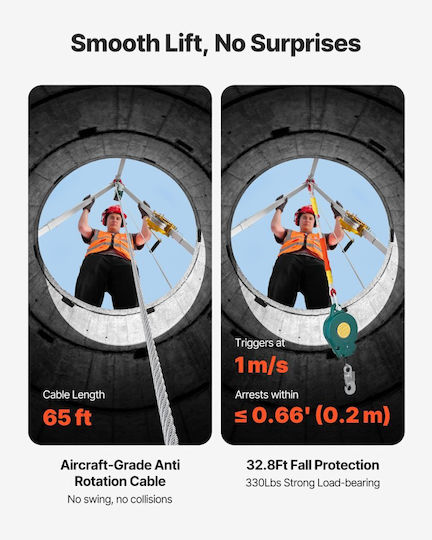

The frame is made of steel and aluminum alloy, and the galvanized cable is 19.8 m long. The cable limits rotation and contact with walls, while the fall-arrest brake controls descent. The system is suitable for lifting personnel and materials, as well as for static loads.
- Winch capacity: 816 kg
- Frame materials: Steel and aluminum alloy
- Cable length: 19.8 m
- Adjustable leg length: 1.34–2.15 m
- Maximum personnel load: 300 kg
- Maximum materials load: 300 kg
- Minimum strength: 1.5 T
- Static load: 3,307 lb
- Equipment: Anti-tip chain and feet for different surfaces
- Standards: CE, ANSI/ASSP Z359.4-2013, OSHA 1926.502/1910.66, AS/NZS 1891.1/1891.4
- Product weight: 29.3 kg
- Product dimensions: 1670 x 1670 x 2185 mm
- Max Load Capacity
- 816 kg
- Collapsible
- No
