Compact Industrial Gateway

The MikroTik KNOT Embedded LTE4 (EC25-EU&KNe) is a compact industrial communication gateway, designed for integrators, automation engineers, and IoT system manufacturers. Equipped with LTE Cat4 connectivity, it supports high-quality cellular connection across a wide range of LTE FDD and TDD frequencies. The device integrates Gigabit Ethernet and offers PoE-in, facilitating power delivery through a single cable.

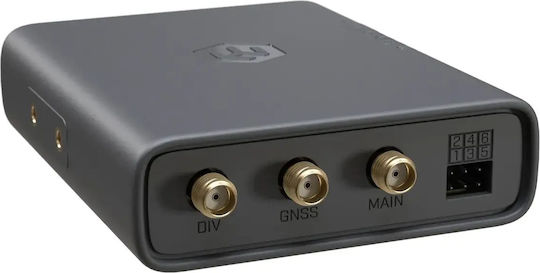

A core feature is the dual SIM system (Nano-SIM + eSIM), which ensures a backup network and uninterrupted operation. It features LTE 2×2 MIMO for improved wireless signal performance. The device is supplied without internal antennas and requires external LTE, GNSS, and Bluetooth antennas, allowing flexible installation.

Industrial Integration Tools

• Capability to connect with IoT sensors
• GNSS support with GPS, GLONASS, Galileo, and BeiDou compatibility
• GPIO port with digital and analog input

Performance and Flexibility

The performance of wireless communication is improved thanks to the external antenna system. The KNOT Embedded LTE4 acts as a centralized IoT hub for various applications such as industrial automation and remote equipment monitoring.

Power & Mounting Options

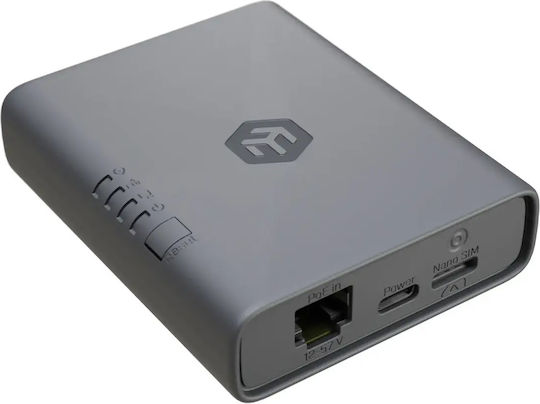

• Power via PoE-in or DC input
• Designed for reliability in electrically noisy environments

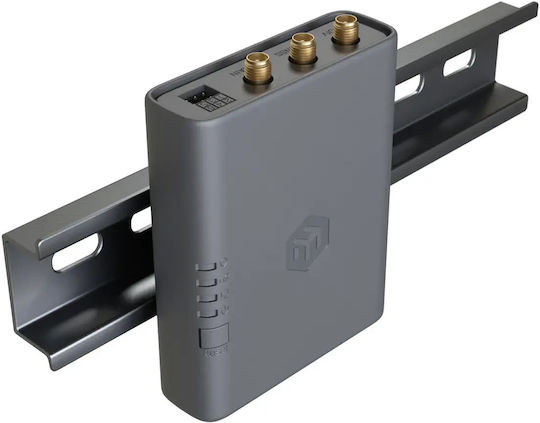

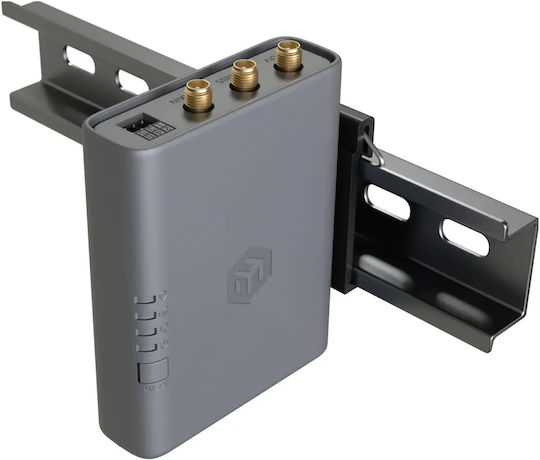

• DIN-rail compatibility

Technical Specifications

• LTE Category: Cat4 - 150Mbps/50Mbps
• Dimensions: 90 x 70 x 22 mm
• Operating temperature: -40 °C to 70 °C
• Pre-installed software: MikroTik RouterOS Level 3
