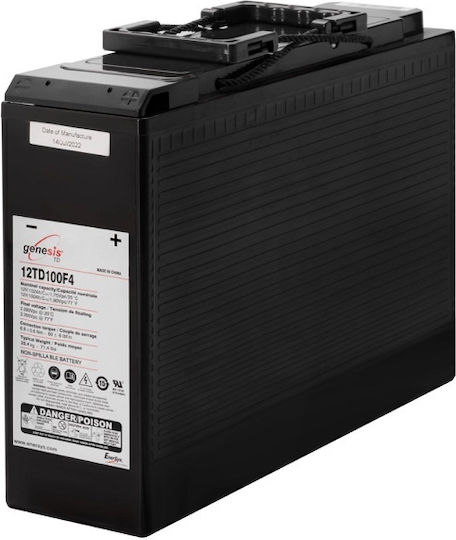

The Enersys Genesis 12TD100F4 12V 100Ah (C10) Front Terminal battery is of AGM technology. It is made from ABS UL94 V0 type plastic with a flame retardant and has high shock resistance. It is suitable for deep discharge applications such as maritime, photovoltaic, emergency power supply and is ideal for use in telecommunications systems, UPS, and IT applications.

Technical Specifications

• Nominal voltage: 12V
• Nominal capacity: 100Ah (C10)
• Dimensions (L × W × H): 394 × 111 × 286 [mm]
• Weight: 32.4 kg
• Terminal type: M6 (front access)
• Internal resistance: 6.9 mΩ
• Indicative short-circuit current: 1785 A

Construction Features

• Sealed / maintenance-free, no need for water or electrolyte refill.
• Positive (+) and negative (-) plates designed for long life.
• Absorbed Glass Mat (AGM) separators for maximum absorption and stable performance.
• Case and cover made of durable ABS plastic, UL94 V-0 rated.
• Terminals with bronze inserts for maximum conductivity.
• Self-regulating pressure relief valve for safe gas release.
• Manufactured according to quality and environmental management standards (ISO 9001, ISO 14001).

Installation / Maintenance Information

• The battery should be placed vertically on its base.
• Suitable for installation in outdoor cabinets or telecommunications and UPS racks.
• Connection with M6 terminals and specified tightening torque.
• Full charge with an appropriate AGM / VRLA charger before first use.
• Ideal operating temperature +20°C ~ +25°C for maximum lifespan.
• Charger operation at “float voltage” for stand-by systems.
• Avoid deep discharge beyond acceptable limits.

Operating and Charging Information

• Recommended “float” voltage: 2.27 Vpc @ 20°C or 2.25 Vpc @ 25°C.
• Recommended voltage for charging cycles: 2.45 Vpc.
• Operating temperature range: -15°C to +45°C.
• Recommended operating temperature: +20°C - +25°C.
• Suitable for UPS, EPS, and telecommunications systems.
