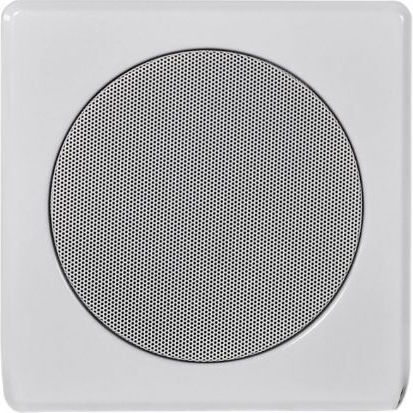

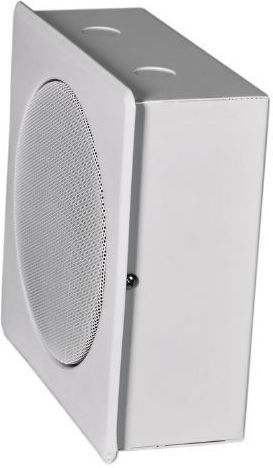

Installation Speakers FW-5V Wall Speaker EN54 100V
Heavy-duty, fire-resistant wall speaker designed for announcements and background music in professional sound systems. The FW-5V features:
- 5.25" coaxial driver mounted in a metal enclosure with powder coating.
- Mounting holes on the back and pre-cut cable entry points (20mm knock-outs) for easy installation.
- Removable front cover for quick access.
- 100V transformer and ceramic terminal block with thermal fuse for compliance with EN54-24 standard in fire protection applications.
- Certified according to EN54-24 for use in emergency evacuation (EVAC) systems.
- Heavy-duty metal enclosure with removable front panel.
- 4 power settings via 100V taps.
Features:
- Construction: Metal enclosure & grille with powder coating.
- 100V line power options: 0.75, 1.5, 3, 6W.
- Speaker: 5.25" reinforced dual-cone paper cone.
- Circuit protection: Thermal fuse.
- Connection: Ceramic screw terminal block.
- SPL @ 1W/1m: 92dB, max 99dB.
- Frequency response: 120Hz - 10kHz.
- Dimensions: 185 x 185 x 70mm.
- Weight: 1.334kg.
- Product Number
- 952.245UK
- Placing
- Wall
- Quantity
- Piece
- Colour
- White
