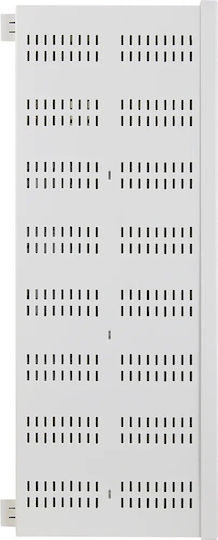

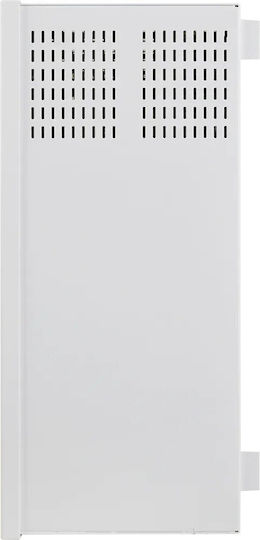

The Pulsar HPSB-24V10A-D power supply is a switched-mode security power supply for CCTV systems. It provides a 27.6 V output and supports battery charging at 1 A, 2 A or 4 A.
- Type: Switched-mode security power supply
- Power supply: 200–240 VAC
- Power output: 9 A / 27.6 VDC
- Maximum current: 10 A
- Efficiency: 87%
- Supported batteries: 2 × 7 Ah, 2 × 17 Ah, 2 × 28 Ah or 2 × 40 Ah
- Protections: SCP, OLP, OVP, UVP and tamper
- Mounting: Surface-mounted
- Indicator: LED indicator
- Construction material: 1 mm-thick DC01 sheet metal
- Colour: White RAL9003
- Protection rating: IP 20
- Dimensions: 460 × 390 × 173 mm (±2 mm)
- Ground clearance: 14 mm
- Type
- Power Supply
