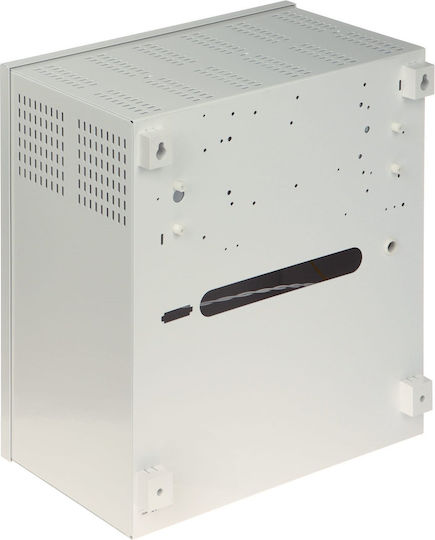

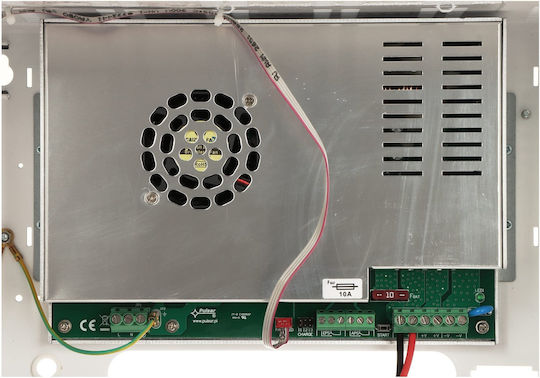

The Pulsar HPSG2-24V10A-C switched-mode backup power supply is designed for CCTV systems, alarms, control panels, sensors, electronic locks and intercoms. It provides a single 10 A / 27.6 V DC output and supports the connection of two 17 Ah batteries. The metal enclosure features an LED indicator and SCP, OLP, OVP, UVP and tamper protection.
- Type: Switched-mode backup power supply
- Supply voltage: 200–240 V
- Output: 10 A / 27.6 V DC
- Recommended batteries: 2 x 17 Ah
- Protections: SCP, OLP, OVP, UVP and tamper
- Enclosure material: DC01 steel sheet
- Enclosure colour: RAL 9003
- Ingress protection rating: IP 20
- Indicators: LED indicator
- Mounting: Wall-mounted
- Operating temperature: -10 °C to +40 °C
- Operating relative humidity: 20%–90%
- Dimensions: 330 x 380 x 173 mm
- Weight: 5.6 kg
- Standards: EN50131-62017, EN60839-112015
- Type
- Power Supply
