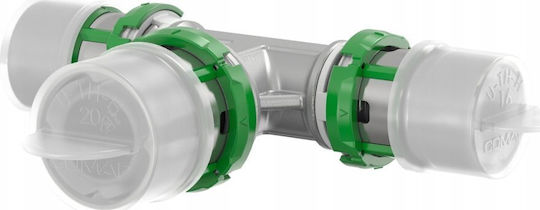

The Comap 26x3-26x3-20x2 reducing tee connects multilayer pipes in water, heating and cooling installations. It features press-fit connections, EPDM seals and a removable Visu-Control ring.
- Type: Reducing tee
- Material: Brass
- Connection type: Persmof
- Dimensions: 26x26x20 mm
- External connection diameters: 26 mm, 26 mm and 20 mm
- Connection lengths: 49 mm, 49 mm and 47 mm
- Wall thicknesses: 3 mm, 3 mm and 2 mm
- Angle: 180°
- Medium temperature: 0 °C to 70 °C
- Maximum operating pressure at 20 °C: 10 bar
- Seal material: EPDM
- Visu-Control ring: Removable
- Seals: Included
- Approval: KIWA
- Material
- Copper
- Corrugated Tube
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
