Pipe Elbow Fittings

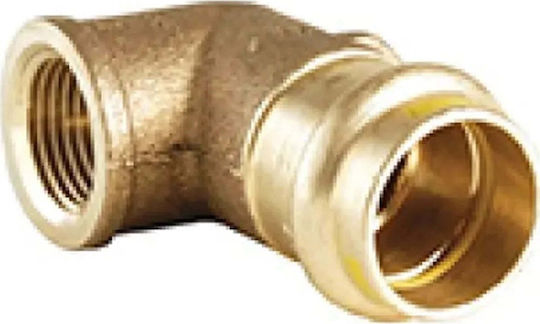

90° Elbow Connector 18x3/4 Pg4090 Gaz Ibp

The Gaz Ibp Pg4090 elbow connector joins pipes in gas installations at a 90° angle. It has a compression connection on one side and an internal BSPP-G gas thread (ISO 228-1) on the other. It is made...

The Gaz Ibp Pg4090 elbow connector joins pipes in gas installations at a 90° angle. It has a compression connection on one side and an internal BSPP-G gas thread (ISO 228-1) on the other. It is made of Cu-DHP copper and CC499-DW brass.

  • Pipe diameter: 18 mm
  • Nominal connection diameter: DN 18
  • Nominal thread diameter: 3/4 inch (20)
  • Maximum operating pressure:...
See Description & Specifications See Description & Specifications
21 98 €
Delivery Mon, 23 Nov - Wed, 25 Nov
4,50 € shipping cost
Sent from Greece
From Getters 4.5 (115)
Greece
20+ pieces
See Hose Connections on the page of Getters
What if I want to return it?

You can return it for free within 14 days. We will come to your place, return it for free, and you will get your money back.

Learn more about invoicing
Questions

Description & Specifications

The Gaz Ibp Pg4090 elbow connector joins pipes in gas installations at a 90° angle. It has a compression connection on one side and an internal BSPP-G gas thread (ISO 228-1) on the other. It is made of Cu-DHP copper and CC499-DW brass.

  • Pipe diameter: 18 mm
  • Nominal connection diameter: DN 18
  • Nominal thread diameter: 3/4 inch (20)
  • Maximum operating pressure: 5 bar
  • Maximum operating temperature: 70 °C
  • Standard: PN-EN 1057
  • Manufacturing approval: INiG-PIB-KOT-2022/0044
  • Application: Joining pipes in accordance with the PN-EN 1057 standard
  • Dimensions: 0.067 m × 0.034 m × 0.039 m
  • Weight: 0.14 kg

Manufacturer

Specifications

for Pex Pipe
No
Type
-

Dimensions

Diameter
18 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
