Boat Switches & Sockets

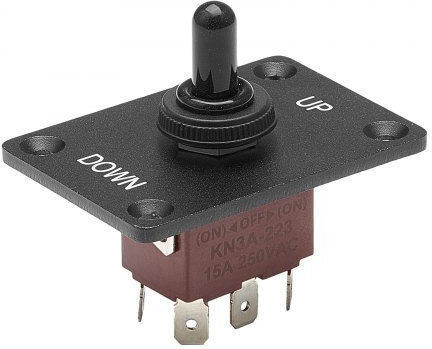

Vevor Boat Switch with Panels Code: XXZXQKZKGYXBNWRM6001V9

The Vevor panel-mount switch controls raising and lowering, as well as forward and reverse motor movement, by momentarily reversing polarity. Its built-in terminals allow the direction of rotation to...

The Vevor panel-mount switch controls raising and lowering, as well as forward and reverse motor movement, by momentarily reversing polarity. Its built-in terminals allow the direction of rotation to be switched without rewiring. Designed for 12 V systems in boats, caravans, trailers, forklifts, and other applications.

The faceplate has a 12 mm mounting...

See Description & Specifications See Description & Specifications
27 52 €
Delivery Fri, 04 Dec - Tue, 08 Dec
4,50 € shipping cost
Sent from Greece
From Bluestore 4.9 (18)
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund. Learn more

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Learn more about invoicing
Questions

Description & Specifications

The Vevor panel-mount switch controls raising and lowering, as well as forward and reverse motor movement, by momentarily reversing polarity. Its built-in terminals allow the direction of rotation to be switched without rewiring. Designed for 12 V systems in boats, caravans, trailers, forklifts, and other applications.

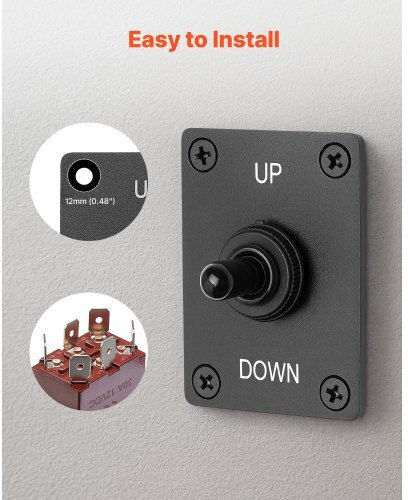

The faceplate has a 12 mm mounting hole, and a waterproof cover is included to protect against dust. The switch has six terminals and DPDT contacts, with three operating positions.

  • Type: Panel-mount
  • Action: Momentary
  • Positions: (ON)-OFF-(ON)
  • Contact type: DPDT

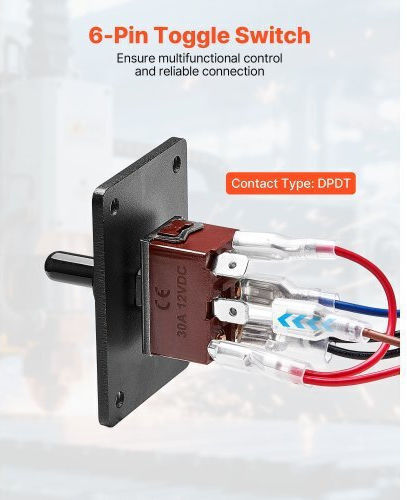

  • Number of terminals: 6
  • Rated current and voltage: 30 A at 12 V DC, 15 A at 250 V AC
  • Mounting hole diameter: 12 mm
  • Cable length: 65 mm

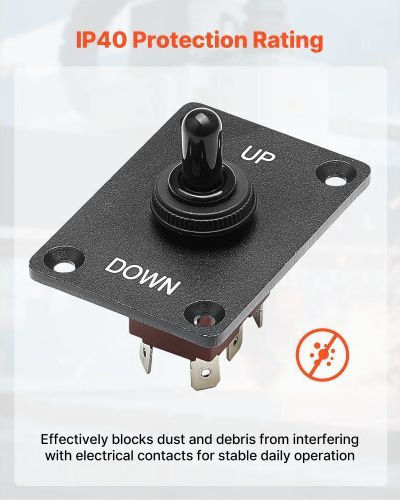

  • Protection rating: IP40

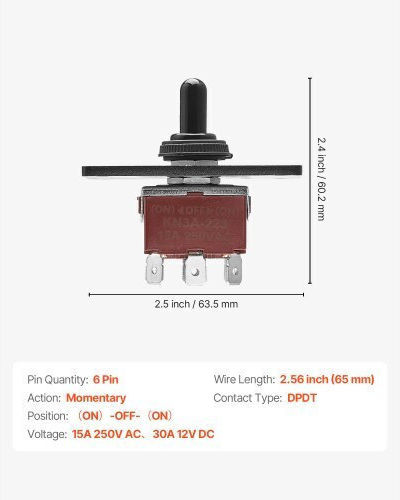

  • Dimensions: 63.5 x 44.8 x 60.2 mm
  • Net weight: 0.068 kg

Manufacturer

Product Number
XXZXQKZKGYXBNWRM6001V9
Type
Switch
Features
with Panels

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
