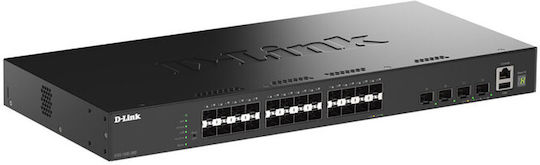

For aggregating connections in enterprise networks, campus networks, and metropolitan area networks, the D-Link DGS-1530-28S/E managed Layer 2 switch has 24 1G SFP ports for downlink connections and 4 10G SFP+ ports for uplink connections. It supports physical stacking of up to 9 units via the 10G SFP+ ports, as well as Zero-Touch Provisioning (ZTP) for initial configuration.

Network features include VLAN, STP, LACP, IGMP/MLD snooping, QoS, and ERPS. The switch supports management via web interface, CLI, and SNMP, and has an RJ-45 console port and a USB port for firmware and backups.

• Type: Smart Managed Layer 2 fiber switch
• Downlink ports: 24 1G SFP ports
• Uplink ports: 4 10G SFP+ ports
• Switching capacity: 176 Gbps
• Packet forwarding rate: 128 Mpps
• MAC address table: 16,000 entries
• Stacking: Physical, up to 9 units via 10G SFP+
• Network features: VLAN, ISM VLAN, STP, LACP, IGMP/MLD snooping, QoS, ERPS
• Security and access control: IEEE 802.1X, D-Link safeguard engine
• Measurements and standards: ITU-T Y.1731 delay measurements, IEEE 802.1ag
• Management: Web, CLI, SNMP, Zero-Touch Provisioning (ZTP), Nuclias compatibility
• Additional ports: 1 RJ-45 console port, 1 USB port for firmware and backups
• Hot-swappable: Hot-swap
• Surge protection: 6 kV on SFP and RJ-45 Ethernet ports, IEC61000-4-5
• Power supply: Internal, with support for backup RPS
• Maximum power consumption: 45.2 W
• Cooling: Active, with 2 Smart Fan fans
• Mounting: Rack-mountable, 1U
• Dimensions: 440 × 210 × 44 mm
• Weight: 3.1 kg
• Operating temperature: -5 °C to 50 °C
• Storage temperature: -20 °C to 70 °C
• Operating and storage humidity: 0% to 95%, non-condensing
