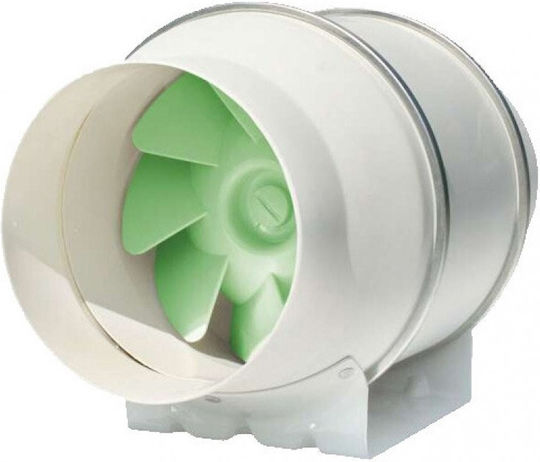

Inline fan (barrel), Havaco ICM-250/1410M, intermediate (in-line) for ducts with a diameter of 250 mm.

• Diagonal ICM fans by Havaco: combine high performance with low noise level and consumption.
• Operating capability: at two speeds.
• Body: made of high-quality polypropylene and impeller made of ABS plastic for a long lifespan.
• Special connectors: facilitate installation in any position (horizontal or vertical), on all types of ducts: plastic, metal, flexible, etc.
• Maximum operating temperature: 60°C.
• Suitable for: air supply or exhaust in ventilation systems for homes, shops, offices, public buildings, etc. Can also be used in kitchen exhaust fans, with the addition of grease filters.
• Protection rating: IP44, insulation class B, 230V-50Hz single phase.
• Sealed box: electrical connection box mounted on the fan.
• Motor: equipped with high-durability bearings and thermal protection.

Technical Specifications:

• Airflow (m³/h): 1064 Speed I / 1405 Speed II
• Power (Watt): 165 Speed I / 225 Speed II
• Rotational Speed (RPM): 1950 Speed I / 2450 Speed II
• Weight (kg): 7.50
• Noise Level (dB): 58 Speed I / 66 Speed II
• Protection Class: IP44
• Warranty (Years): 2
