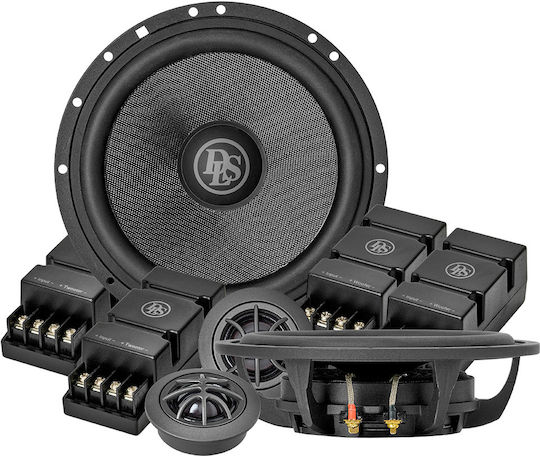

The DLS RCS6.25 component car speaker set is a 2-way system designed for installations with limited space. The woofer features a fiberglass cone, Santoprene surround, die-cast aluminum basket and a hybrid ferrite and neodymium magnet system. The silk-dome tweeter is ventilated at the magnet and back plate, while its acoustic chamber reduces resonances at the lower end of its operating range.
The woofer and tweeter have separate 12 dB/octave crossover filters with MKT capacitors, air-core inductors and MOX resistors. The separate filters allow connection through the car’s factory wiring, with no additional cables.
- Type: 2-way component speakers
- Shape: Round
- Diameter: 6.5 inches / 165 mm
- Mounting depth: 41 mm
- RMS power: 100 W
- Peak power: 200 W
- Impedance: 4 ohms
- Sensitivity: 89 dB
- Frequency range: 53–27,000 Hz
- Woofer cone: Fiberglass
- Woofer surround: Santoprene
- Woofer basket: Die-cast aluminum
- Woofer magnet system: Hybrid ferrite and neodymium
- Tweeter dome: 25 mm silk
- Crossovers: Separate for woofer and tweeter, 12 dB/octave
- Product Number
- RCS6.25
Dimensions
- Type
- 2 Way
- Shape
- Round
- Round Speakers Diameter
- 6.5 "
Technical Specifications
- Peak Power
- 200 W
- Power (RMS)
- 100 W
- Nominal Impendance
- 4 ohm
