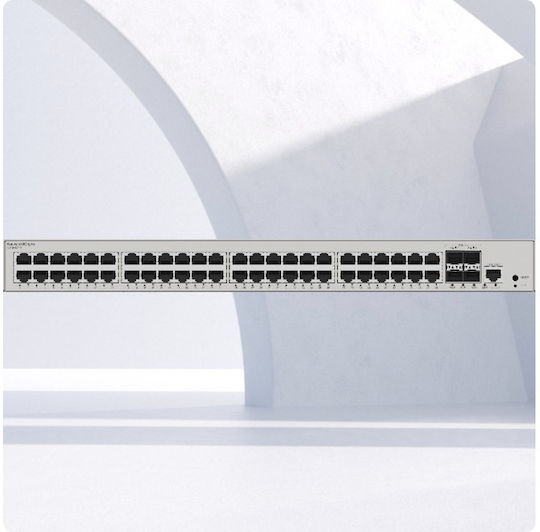

The Huawei S310-48P4X is a managed switch from the eKitEngine series. It features:
- 48 Gigabit Ethernet ports (10/100/1000 Mb/s)
- 4 SFP+ slots (10 Gb/s)
All Ethernet ports support PoE+, providing a maximum output power of 15.4 W for 802.3af or 30 W for 802.3at, with a total power budget of 380 W.
The switch offers Layer 2 management and basic Layer 3 functions. It supports Spanning Tree Protocol (STP/RSTP/MSTP) and Ethernet Ring Protection Switching (ERPS). It includes Smart Link for backup connections.
It protects against attacks such as DoS and IP/MAC. It uses DHCP Snooping and ARP to prevent spoofing. It supports iStack for virtual stacking of multiple switches.
Management can be performed via Web UI, CLI, or SNMP. It supports cloud management and the eKit application. It includes an integrated AC power supply and active cooling with smart fan speed regulation.
Main features:
- 48 RJ45 ports with PoE+
- 4 SFP+ ports
- Switching capacity: 176 Gbit/s
- Packet forwarding rate: 131 Mpps
- Dimensions: 44.2 x 22 x 4.36 cm
Network Specifications
- Type
- Managed
- Layer
- L2
- PoE
- Yes
Technical Specifications
- Ethernet connections
- 48 Port
- Ethernet Speed
- 2500 Mbps
- SFP connections
- 4 Port
- Rack mounting
- Yes
