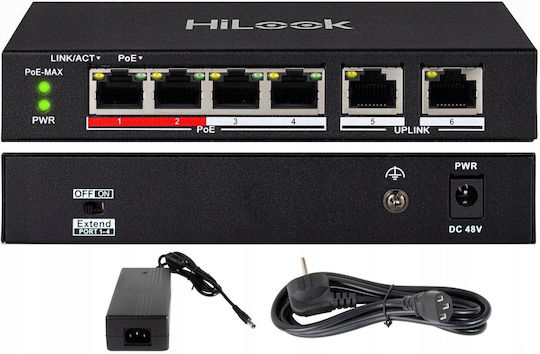

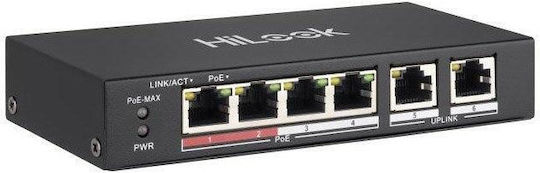

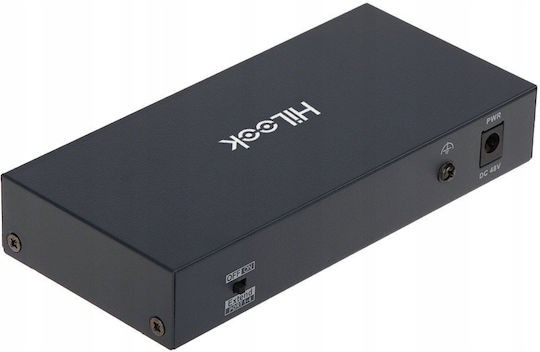

The HikVision HiLook NS-0106P-35 is a reliable and efficient switch, ideal for expanding networks that require PoE power. It is particularly suitable for surveillance camera systems, offices, or home applications. It features 4 PoE 10/100 Mbps ports and 2 uplink 10/100 Mbps ports, ensuring stable connectivity and efficient power supply for compatible devices.
- Standards Compatibility: IEEE 802.3af, IEEE 802.3at
- Total PoE Budget: 35 W
- Maximum PoE Power per Port: 30 W
- Switching Capacity: 1.6 Gbps
- Forwarding Rate: 0.8928 Mpps
- Operating Temperature: -10°C to 40°C
- Material: Metal
- Protection: 6 kV Surge Protection
- Dimensions: 145 x 68.45 x 25.6 mm
- Weight: 265 g

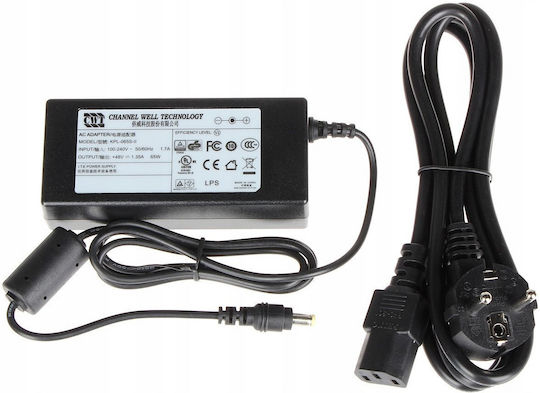

The switch offers protection against overheating and effective heat dissipation. It incorporates 6 kV surge protection for a high level of safety for connected equipment. Thanks to its compact size and weight, it easily integrates into any network environment. Power is supplied via a 48 VDC, 0.8 A adapter, ensuring optimal energy consumption. As an unmanaged plug & play switch, the HiLook NS-0106P-35 requires no additional configuration.
Network Specifications
- Type
- Unmanaged
- Layer
- L2
- PoE
- Yes
Technical Specifications
- Ethernet connections
- 6 Port
- Ethernet Speed
- 1000 Mbps
- Switching Speed
- 1.6 Gbps
- Rack mounting
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
