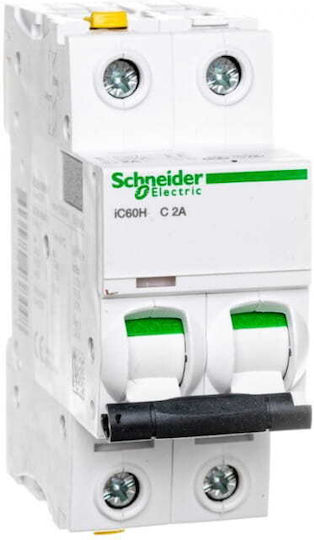

Circuit Breaker 2P C 2A 10KA AC IC60H-C2-2 A9F07202
Automatic Circuit Breaker

Circuit Breaker 2P C 2A 10KA AC IC60H-C2-2 A9F07202

The Acti9 automatic circuit breaker has the following features:

  • Manufacturer's reference: A9F07202
  • Number of poles: 2
  • Operating voltage: 400 V
  • Rated current: 2 A
  • Length: 90 mm
  • Width: 70 mm (2...

The Acti9 automatic circuit breaker has the following features:

  • Manufacturer's reference: A9F07202
  • Number of poles: 2
  • Operating voltage: 400 V
  • Rated current: 2 A
  • Length: 90 mm
  • Width: 70 mm (2 modules)
  • Height: 35 mm
  • Installation depth: 69.5 mm
  • Weight: 0.210 kg
  • Surge category: 4
  • Energy limiting class: 3
  • Type of voltage: AC
  • Protection rating (IP): IP20
  • ...
See full description See full description
54 24 €
Delivery Wed, 15 Jul - Tue, 21 Jul
4,00 € to a Skroutz Point or 5,00 € to an address
Do you want it with Free shipping to Skroutz Point?
Sent from Greece
From Getters 4.5 (108)
4.5 (108 reviews)
Greece
13 pieces
See Electrical Panel Supplies on the page of Getters
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

The Acti9 automatic circuit breaker has the following features:

  • Manufacturer's reference: A9F07202
  • Number of poles: 2
  • Operating voltage: 400 V
  • Rated current: 2 A
  • Length: 90 mm
  • Width: 70 mm (2 modules)
  • Height: 35 mm
  • Installation depth: 69.5 mm
  • Weight: 0.210 kg
  • Surge category: 4
  • Energy limiting class: 3
  • Type of voltage: AC
  • Protection rating (IP): IP20
  • Pollution degree: 3
  • Rated short-circuit capacity according to EN 60898: 10 kA
  • Rated short-circuit capacity according to IEC 60947-2: 10 kA

Possibility of adding additional equipment: Yes

Synchronized disconnection of neutral pole: No

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
2
Rated Current
2 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
