Description
Specifications

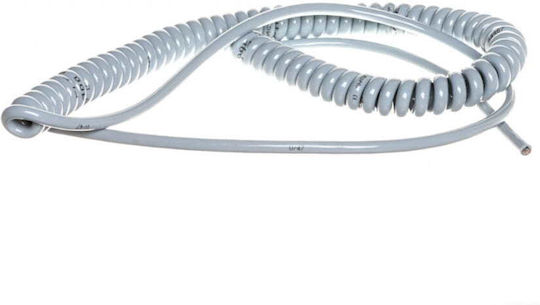

The product belongs to the category Misc Cables and has the following technical specifications:
- Temperature of cable for movable connections: min 5 °C, max 50 °C
- Temperature of cable for permanent installations: min 5 °C, max 50 °C
- Length: 26 m
- Length of spiral (non-stretched): 500 mm
- Length of spiral (stretched): 1500 mm
- EAN code: 4044773302455
- Identification of conductor: Numbers
- Insulation of conductor: PVC
- Conductor category: Category 5 = flexible
- Insulator color: Gray
- Number of conductors: 4
- Material of outer protection: PUR (polyurethane)
- Nominal voltage U: 500 V
- Nominal voltage U0: 300 V
- Flame protection: According to EN 60332-1-2
- Approximate outer diameter: 6.2 mm
- Series: SPIRAL 400 P
- Width: 70 mm
- Weight: 0.25 kg
- Height: 60 mm
- Nominal cross-section of conductor: 0.75 mm²
- Protective conductor: Yes
- Terminal A
- -
- Terminal B
- -
- Length
- 26 m
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
