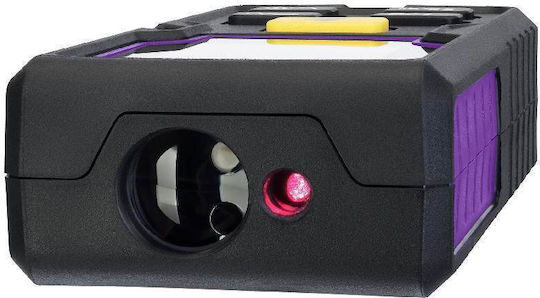

The Ermenrich Reel PLUS GD40 laser distance meter is a measuring device designed for various measurements in small to medium-sized rooms. This versatile tool can be used in construction, renovations, interior decoration, industry, installation work, and many other applications. The maximum measuring range of the laser is 40 meters. In addition to distance measurements, the device can also measure surface area and volume in continuous measurement mode.
With the Pythagorean theorem function, the Ermenrich Reel PLUS GD40 can automatically calculate the distance between two points based on indirect parameters when the laser cannot directly target one of the points. The device is powered by 2 AAA batteries. A set of batteries is capable of more than 5000 measurements. The ergonomic three-line LCD display ensures comfortable operation even in demanding work environments. For energy saving, there is an automatic shutdown feature for both the laser and the device, as well as a low battery indicator.
- Various measurements: distance/length, area, volume
- Distance calculation with indirect points (Pythagorean theorem)
- Single measurement and continuous measurement mode
- Over 5000 measurements with one set of batteries, chronological storage of 20 data groups
- Compact and ergonomic design, comfortable for one-handed use
Package dimensions: 17 x 12 x 4 cm
Shipping weight: 0.21 kg
Type: Laser
Distance measurement: yes
Scanning mode: yes
Measuring range: 0.05–40 m
Length units: m
Measurement accuracy: ±2 mm
Surface measurement: yes
Surface units: m², sq.ft.
Volume measurement: yes
Volume units: m³, cu.ft.
Pythagorean theorem function: yes
Addition and subtraction: yes
Reference point: yes
Quiet mode: yes
Laser class: class 1
Automatic shutdown laser/device: 30/180 seconds

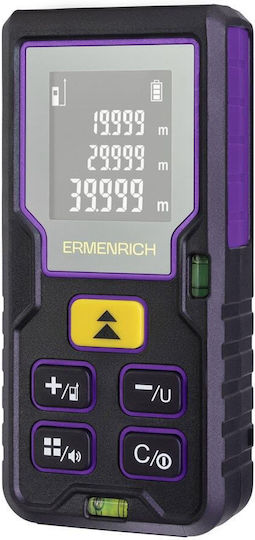

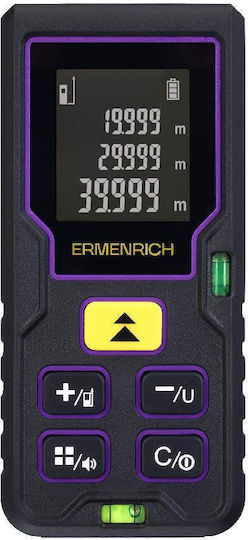

Number of display lines: 3
Data chronological storage: 20 groups

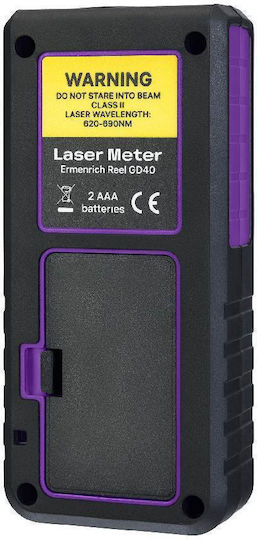

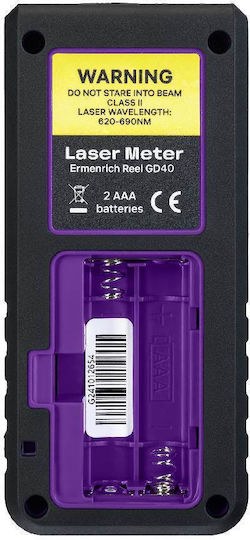

Power supply: 2 AAA batteries (not included)
Operation with one set of batteries: > 5000 measurements
Low battery indicator: yes
Operating temperature range, °C: 0...+40
Dimensions
- Minimum Distance
- 0.04 m
- Maximum Distance
- 40 m
- Measurement Accuracy (±)
- 2 mm
- Laser Category
- Class 1
- Laser Beam Color
- Red
- Weight
- 210 gr
Features
- Measurement Capabilities
- Volume, Area, Pythagorean
- Bluetooth
- No
- USB Charging
- No
- Addition / Subtraction
- Yes
- Maximum / Minimum Value
- No
- Built-in Level
- Yes
Battery & Accessories
- Number of Required Batteries
- -
- Battery Voltage
- -
- Battery Capacity
- -
- Battery Type
- AAA
- Case
- No
Device Certifications
- ISO 16331-1
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
